Запчасти Case IH LB434S (55.418.060) - CAMERA KIT (55) - ELECTRICAL SYSTEMS

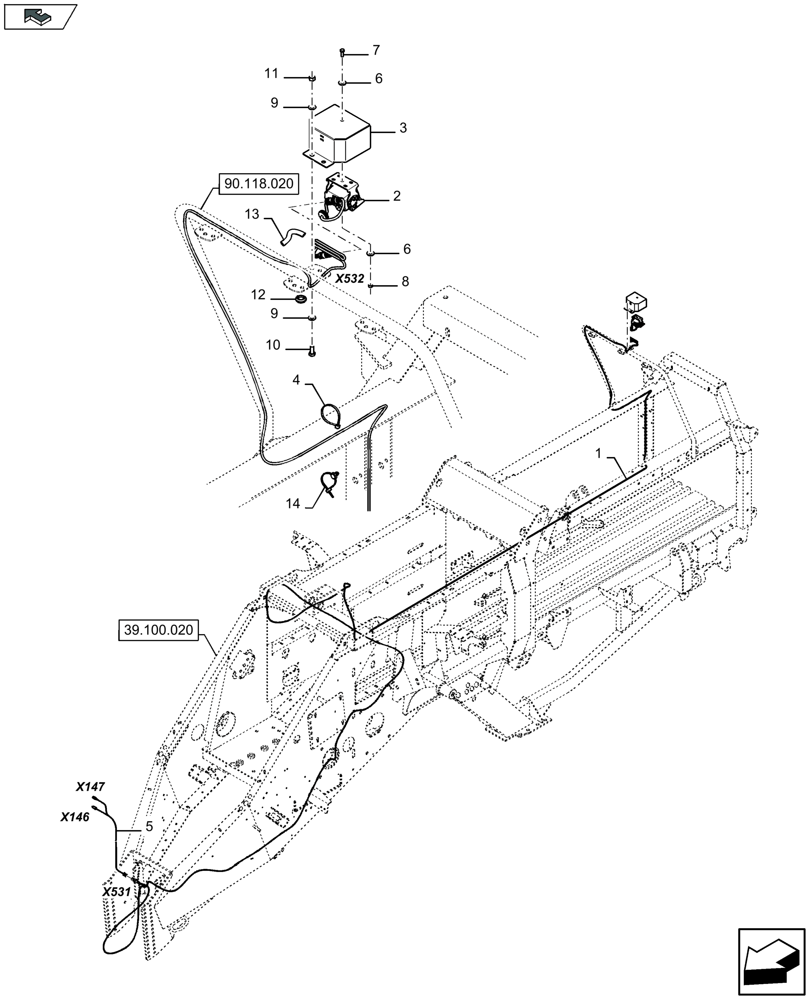

Схема запчастей Case IH LB434S - (55.418.060) - CAMERA KIT (55) - ELECTRICAL SYSTEMS
90.118.020
x146
x147
x531
13
9
11
5
1
14
6
10
2
6
4
x532
9
7
8
3
12
39.100.020

Артикул

Название

Примечание

Количество

1

84481016

WIRE HARNESS

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

1

47966335

WIRE HARNESS

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

2

84315054

VIDEO CAMERA

, Serial Range: -C136

1шт.

2

47768902

VIDEO CAMERA

, Start Serial: D137

1шт.

3

84474591

GUARD

1шт.

4

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

5

84136553

WIRE HARNESS

1шт.

5

47533755

WIRE HARNESS

, Start Serial: D097

1шт.

FOR ISOBUS TRACTOR ONLY

1шт.

6

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

7

10977834

BOLT,Hex, M5 x 16mm, Cl 10.9, Full Thd

1шт.

8

86508813

NUT,M5, Cl 8

1шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

81844483

PLUG,.73" x 1"

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

13

47427651

CONDUIT

L = 0,1 M

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

14

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

Выбрано товаров: 23
