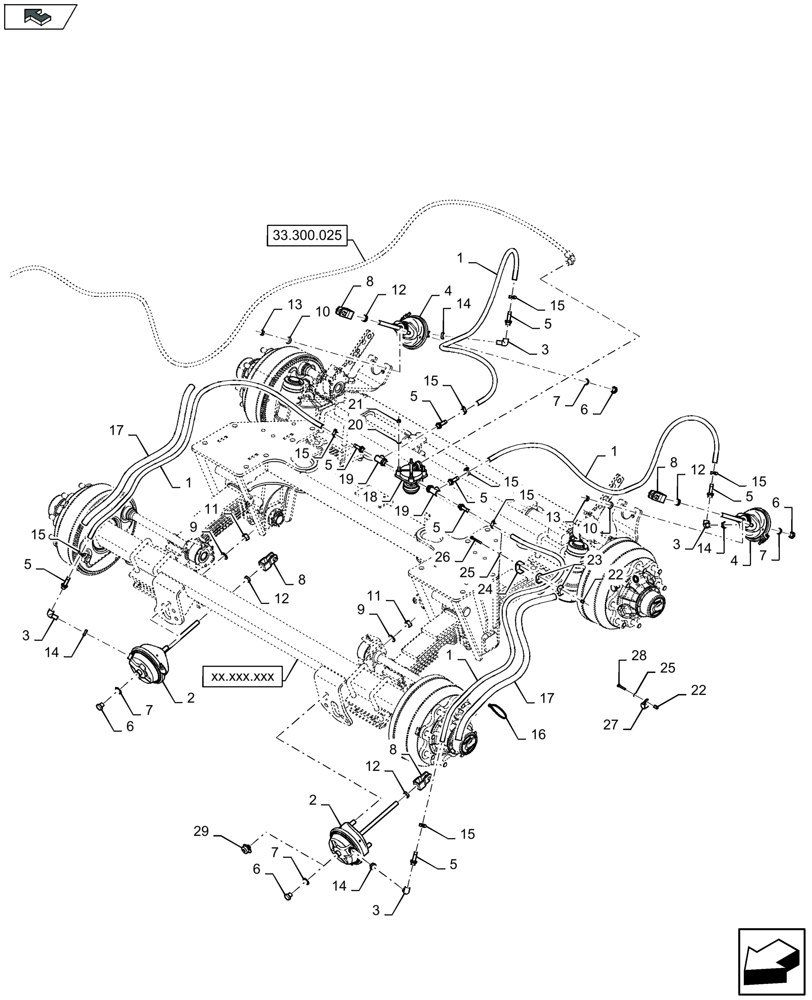

Запчасти Case IH LB434R XL (33.300.015) - PNEUMATIC BRAKES - TANDEM AXLE (33) - BRAKES & CONTROLS

1

84014198

HOSE,18mm OD x 3.5mm Thk

L = 6,3 M

1шт.

2

84014961

CYLINDER

2шт.

3

84100254

HYD CONNECTOR

4шт.

4

84078896

CYLINDER

2шт.

5

9512534

HYD CONNECTOR

8шт.

6

84014311

PLUG

4шт.

7

84014312

RING

4шт.

8

84014245

YOKE

4шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

11

331192

NUT,M16 x 1.5, Cl 8

4шт.

12

364164

THIN NUT,Thin, M16 x 1.5, Cl 04

4шт.

13

330327

NUT,M12 x 1.5, Cl 8

4шт.

14

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

4шт.

15

150064

CLAMP

8шт.

16

86566990

CABLE TIE,292mm OAL x 4.8mm W

8шт.

17

84078637

WRAPPER

L = 1,9 M

1шт.

18

48024683

PNEUMATIC VALVE

1шт.

19

48027774

COUPLING

2шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

2шт.

22

87716662

NUT

1шт.

23

433007

CLAMP

, Serial Range: -C165

2шт.

24

433100

SUPPORT

, Serial Range: -C165

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

26

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

, Serial Range: -C165

1шт.

27

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: D166

1шт.

28

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

, Start Serial: D166

1шт.

29

48094165

, Start Serial: D168

ORIFICE

1шт.
