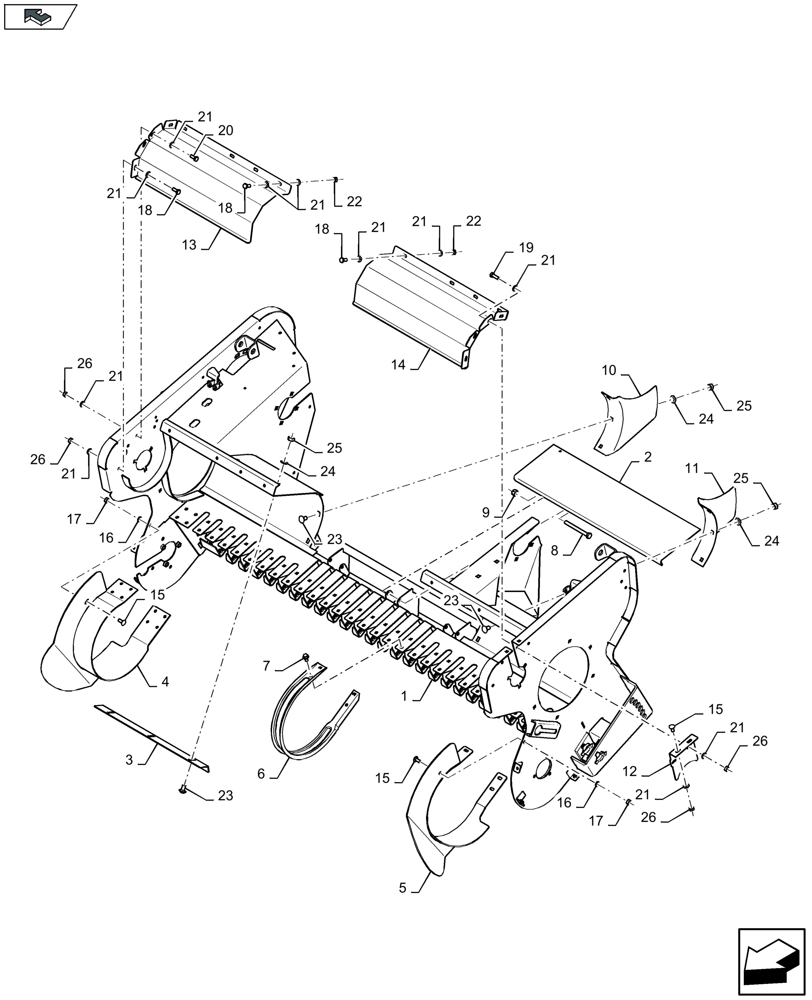

Запчасти Case IH LB434R XL (60.220.020) - PICK-UP, FRAME (60) - PRODUCT FEEDING

1

84280922

FRAME

, Serial Range: -C136

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

47826642

FRAME

, Start Serial: D137

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

84269065

FRAME

, Serial Range: -C136

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

1

47824923

FRAME

, Start Serial: D137

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

2

84224715

PLATE

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

2

84215191

PLATE

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

3

84218623

ADJUSTING PLATE

4шт.

4

84218700

SHIELD

, Serial Range: -C149

1шт.

4

47942051

SHIELD

, Start Serial: D150

1шт.

5

84242885

SHIELD

, Serial Range: -C149

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

5

47942046

SHIELD

, Start Serial: D150

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

5

84218702

SHIELD

, Serial Range: -C149

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

5

47942058

SHIELD

, Start Serial: D150

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

6

84274384

BRACKET

27шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

MAINTENANCE PART

1шт.

6

84274384

BRACKET

33шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

MAINTENANCE PART

1шт.

7

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

1шт.

8

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

3шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

10

84218731

PLATE

1шт.

11

84218733

PLATE

1шт.

12

84280564

SUPPORT

1шт.

13

84268702

SHIELD

, Serial Range: -C136

1шт.

13

47812027

SHIELD

, Start Serial: D137

1шт.

14

84268704

SHIELD

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

336256

NUT,M8, Cl 8

2шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

33шт.

22

9706690

NUT,M8 x 1.25, Cl 8

7шт.

23

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

18шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

25

100016

NUT,M10 x 1.5, Cl 8

18шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.
