Запчасти Case IH LB434R (33.300.020) - PNEUMATIC BRAKE RESERVOIR AND BRAKE VALVE - TANDEM AXLE (33) - BRAKES & CONTROLS

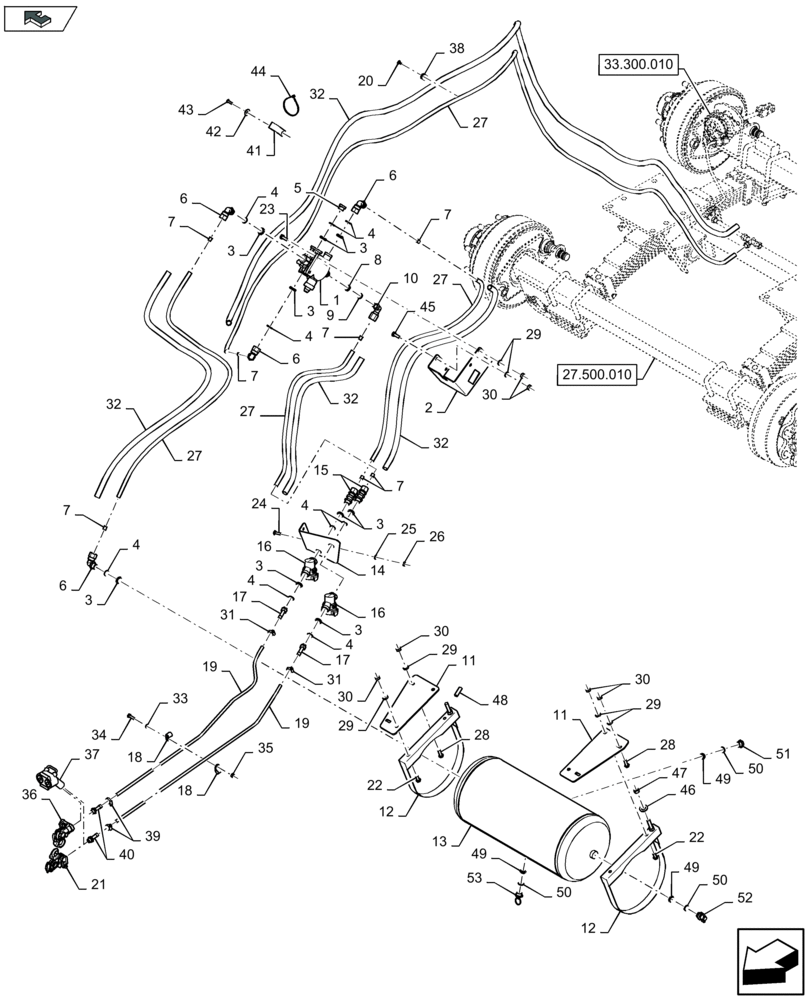

Схема запчастей Case IH LB434R - (33.300.020) - PNEUMATIC BRAKE RESERVOIR AND BRAKE VALVE - TANDEM AXLE (33) - BRAKES & CONTROLS
4
18
4
36
17
19
30
32
7
35
7
29
10
42
49
53
37
4
7
3
15
33
45
21
16
1
4
6
11
29
3
28
48
19
4
33.300.010
40
41
27
6
14
12
50
3
50
22
18
4
47
9
30
27
38
27.500.010
7
12
52
26
44
51
29
27
home
16
31
49
30
7
4
32
27
7
5
46
32
28
3
22
34
13
17
32
8
3
39
3
6
25
50
23
43
2
30
11
29
31
49
24
6
3
20

Артикул

Название

Примечание

Количество

1

9512544

BRAKE VALVE

1шт.

2

84562071

U-BRACKET

1шт.

3

9512529

O-RING

1шт.

4

9512530

WASHER, THRUST,22mm ID x 27mm OD x 2.6mm Thk

1шт.

5

9512523

PLUG

1шт.

6

9512525

ELBOW

4шт.

7

9512527

FERRULE

7шт.

8

9512532

O-RING

1шт.

9

9512533

WASHER, THRUST,16.1mm ID x 22mm OD x 2.6mm Thk

1шт.

10

84007190

ELBOW,M16 x 1.5 Male

1шт.

11

84417904

PLATE

2шт.

FOR LB324S LB324P LB324R LB334S LB334P LB334R ONLY

1шт.

11

84415666

PLATE

2шт.

FOR LB424S LB424R LB434S LB434R ONLY

1шт.

12

84414378

CLAMP

2шт.

13

84414367

RESERVOIR

1шт.

14

84415680

BRACKET

1шт.

15

9512528

HYD CONNECTOR

2шт.

16

9512545

AIR FILTER

2шт.

MAINTENANCE PART

1шт.

17

9512531

HYD CONNECTOR

2шт.

18

431352

CLAMP,12mm ID, 8.5mm Bolt Hole, P Type

, Serial Range: -C087

2шт.

18

84352951

CLAMP

, Start Serial: D088

1шт.

19

84014198

HOSE,18mm OD x 3.5mm Thk

L = 10.8 M

1шт.

20

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

3шт.

21

9512546

COUPLING BLOCK

1шт.

MAINTENANCE PART

1шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

23

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

24шт.

24

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

, Serial Range: -C087

2шт.

24

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D088

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

26

9706690

NUT,M8 x 1.25, Cl 8

2шт.

27

9512535

HOSE

L = 7.9 M

1шт.

28

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

, Serial Range: -C087

4шт.

28

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

, Start Serial: D088

4шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

30

100016

NUT,M10 x 1.5, Cl 8

12шт.

31

150064

CLAMP

2шт.

32

9507812

CONDUIT

L = 7.9 M

1шт.

33

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Serial Range: -C087

1шт.

34

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

, Serial Range: -C087

1шт.

35

86629542

NUT,M8 x 1.25, Cl 8.8

, Serial Range: -C087

1шт.

36

9512537

COUPLING BLOCK

1шт.

MAINTENANCE PART

1шт.

37

84017270

COUPLING BLOCK

1шт.

FOR ITALY ONLY

1шт.

MAINTENANCE PART

1шт.

38

431352

CLAMP,12mm ID, 8.5mm Bolt Hole, P Type

,, Serial Range: -C015

4шт.

38

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

,, Serial Range: -D116087

4шт.

38

700514

CLAMP,3.8mm, Coat, M8 Bolt

, Start Serial: D088

3шт.

39

150064

CLAMP

,, Start Serial: D016

2шт.

40

9512534

HYD CONNECTOR

,, Start Serial: D016

2шт.

41

9837593

CLAMP

,, Start Serial: D016

1шт.

42

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

,, Start Serial: D016

1шт.

43

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

,, Start Serial: D016

1шт.

44

86566990

CABLE TIE,292mm OAL x 4.8mm W

,, Start Serial: D016

1шт.

45

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

, Serial Range: -C087

2шт.

45

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

, Start Serial: D088

2шт.

46

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

47

412126

NUT,M12 x 1.75

, Start Serial: D088

2шт.

48

291186

PROTECTION STRIP,9.9mm W

L=42MM, Start Serial: D088

1шт.

49

9512529

O-RING

, Start Serial: D088

3шт.

50

9512530

WASHER, THRUST,22mm ID x 27mm OD x 2.6mm Thk

, Start Serial: D088

3шт.

51

9512523

PLUG

, Start Serial: D088

1шт.

52

9512540

HYD CONNECTOR

, Start Serial: D088

1шт.

53

9512541

DRAIN PLUG

, Start Serial: D088

1шт.

Выбрано товаров: 67
