Запчасти Case IH LB434R (90.105.030) - SIDE DOOR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

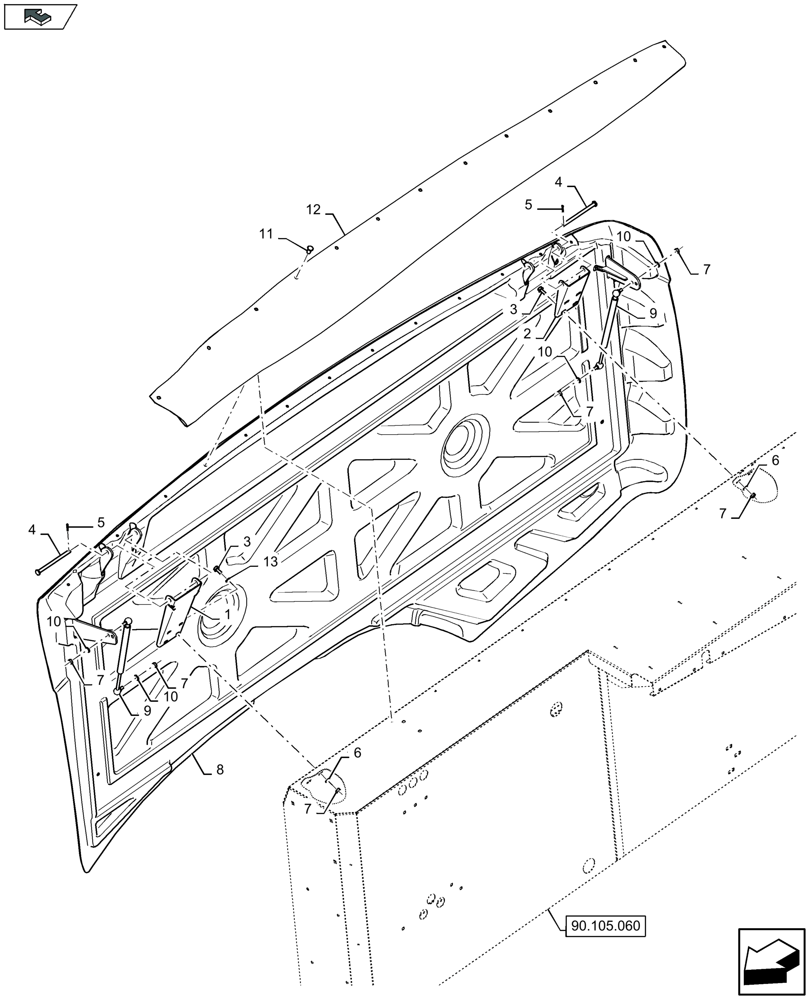

Схема запчастей Case IH LB434R - (90.105.030) - SIDE DOOR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.060
7
9
3
1
9
3
home
8
4
7
7
6
7
5
2
6
7
10
10
11
4
5
10
12
7
13
10

Артикул

Название

Примечание

Количество

1

84518403

HALF-HINGE

1шт.

2

84280104

HALF-HINGE

1шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

4

86605626

CLEVIS PIN,M10 x 150

2шт.

5

10796401

COTTER PIN,M3.2 x 18

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

7

9706690

NUT,M8 x 1.25, Cl 8

12шт.

8

84229275

PANEL

1шт.

FOR SINGLE AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

8

84229289

PANEL

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

8

84229289

PANEL

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

9

84280108

GAS STRUT,485mm Extended, 285mm Compressed

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

11

84280063

HALF-HINGE

25шт.

12

84379428

CANVAS

1шт.

13

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

, Start Serial: D168

4шт.

Выбрано товаров: 20
