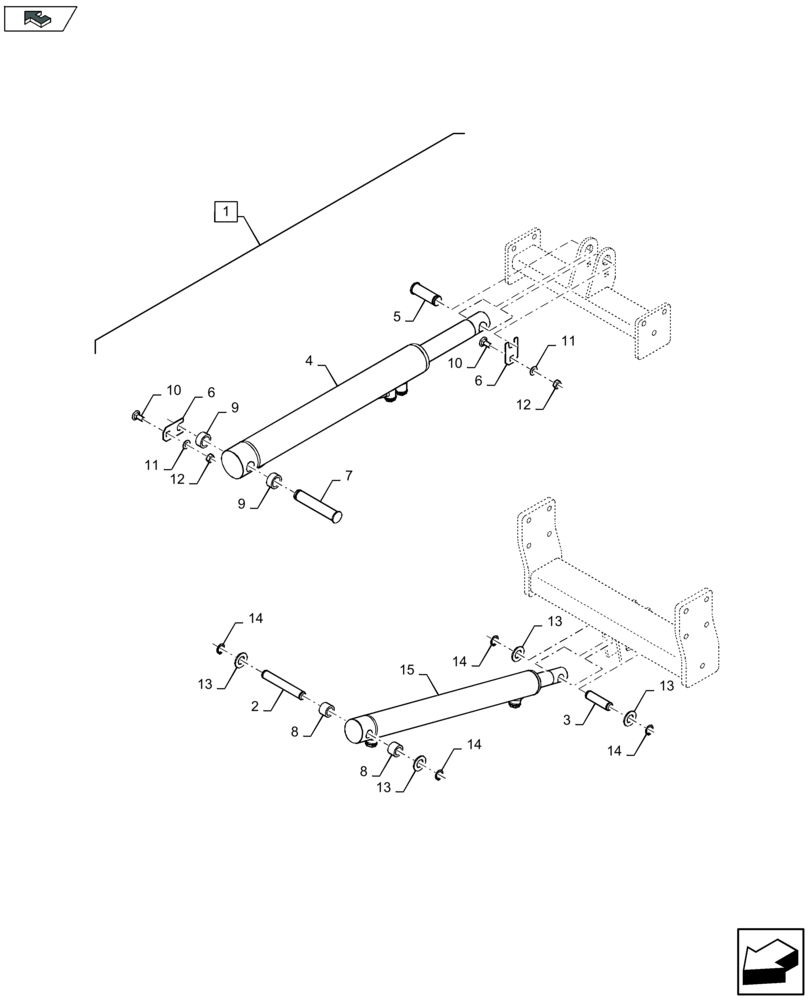

Запчасти Case IH LB434R (88.070.011[02]) - SERVICE KIT : STANDARD AND PARTIAL BALE EJECTION MECHANISM - C084 (88) - ACCESSORIES

1

47639120

KIT

Incl 2 - 15

1шт.

2

84529169

SHAFT,20mm OD x 135mm L

1шт.

3

87491174

SHAFT

1шт.

4

47466446

HYDRAULIC CYLINDER

1шт.

5

84571834

SHAFT,25mm OD x 79mm L

1шт.

6

84571856

PLATE

2шт.

7

84571826

SHAFT,25mm OD x 137mm L

1шт.

8

84571868

SLEEVE,20mm ID x 30mm OD x 21mm L

2шт.

9

84571865

SPACER,25mm ID x 35mm OD x 16mm L

2шт.

10

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.

13

378247

WASHER,21mm ID x 39mm OD x 3mm Thk

4шт.

14

370024

CIRCLIP,M20, Ext

4шт.

15

47655770

HYDRAULIC CYLINDER

1шт.
