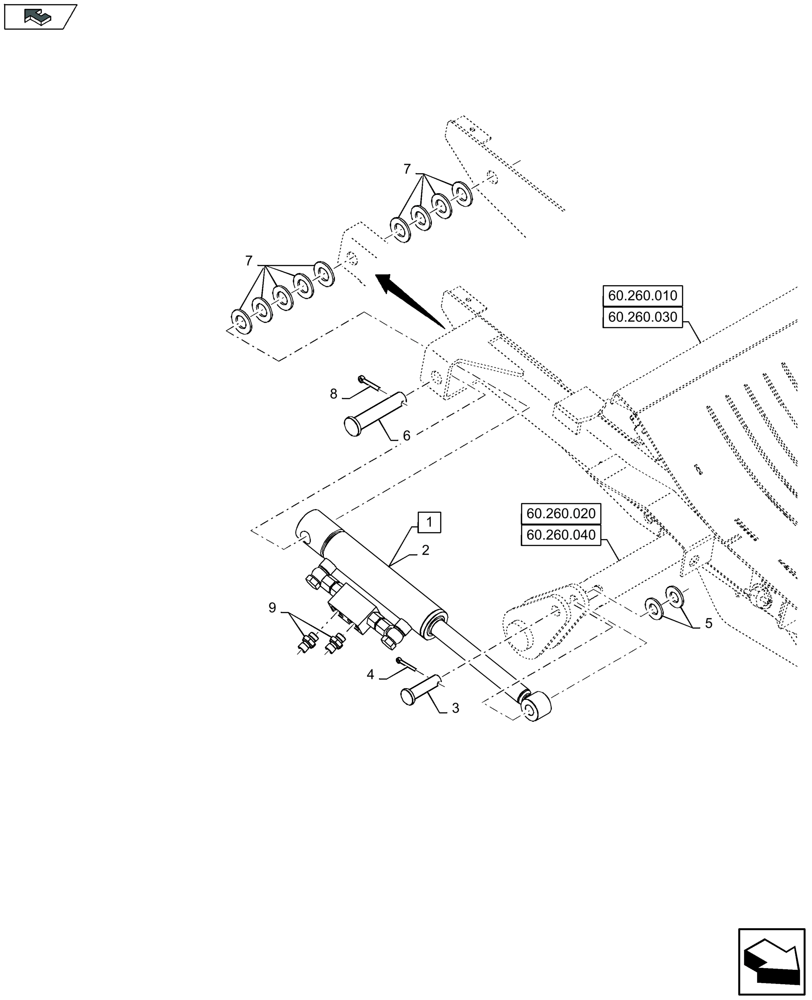

Запчасти Case IH LB434R (35.565.010) - KNIFE DRAWER, HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84355748

CORE-HYD CYLINDER,Double Acting, 25mm Rod, 121.5mm Stroke

Incl 2

1шт.

2

84053275

SEAL KIT

1шт.

3

9850761

CLEVIS PIN,M16 x 60

1шт.

4

412685

COTTER PIN,M4 x 32

1шт.

5

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

6

9501786

PIN,20mm OD x 100mm L

1шт.

7

378247

WASHER,21mm ID x 39mm OD x 3mm Thk

9шт.

8

412686

COTTER PIN,M5 x 32

1шт.

9

84037257

HYD CONNECTOR

2шт.
