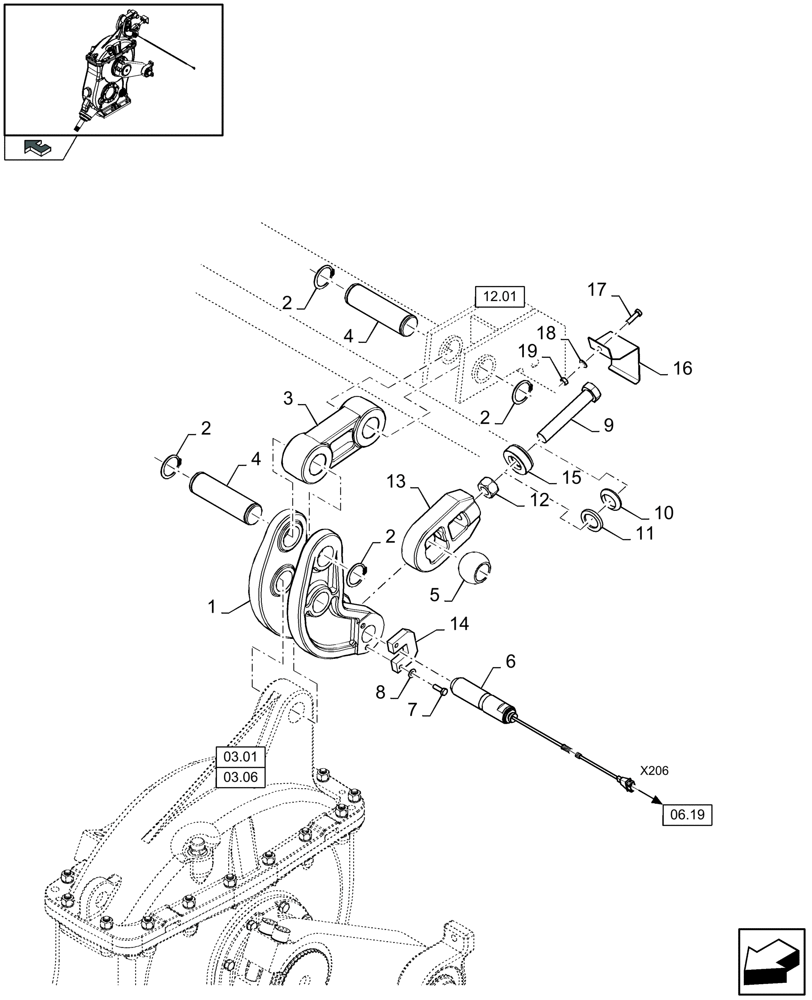

Запчасти Case IH LB433S (03.11[01]) - PLUNGER, LOAD MEASUREMENT (03) - MAIN GEARBOX

1

84807838

LEVER

1шт.

2

370007

SNAP RING,M45, Ext

6шт.

3

84068193

LEVER

1шт.

4

87362339

SHAFT

3шт.

5

86508450

BALL

1шт.

6

84078757

SENSOR

60 kN, B17 - LOAD SENSOR, Serial Range: -C813

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

6

84232219

SENSOR

, Serial Range: -F814923

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

6

84523156

SENSOR

, Start Serial: D924

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

6

84074551

SENSOR

90 kN, B17 - LOAD SENSOR, Serial Range: -C813

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

6

84232218

SENSOR

, Serial Range: -F814923

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

6

84523153

SENSOR

, Start Serial: D924

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

84062747

BOLT,Hex, M30 x 150mm, Cl 8.8, Full Thd

, Serial Range: -C799

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

9

87610711

BOLT,Hex, M24 x 160mm, Cl 10.9

, Serial Range: -F800813

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

9

86639186

SCREW,Hex, M24 x 140mm, Cl 10.9

, Start Serial: D814

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

9

84801382

BOLT

M30 x 150, Serial Range: -C799

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

9

87610711

BOLT,Hex, M24 x 160mm, Cl 10.9

, Serial Range: -F800813

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

9

86639186

SCREW,Hex, M24 x 140mm, Cl 10.9

, Start Serial: D814

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

10

84062741

DISC,31mm ID x 56mm OD x 11.2mm W

, Serial Range: -C799

1шт.

11

84062740

DISC

, Serial Range: -C799

1шт.

12

84062746

THIN NUT,Thin, M30 x 3.5, Cl 05

, Serial Range: -C799

1шт.

12

85700123

NUT,M24, Cl 8

, Start Serial: D800

1шт.

13

84068192

ARM

, Serial Range: -C799

1шт.

13

84185669

ADJUSTER

, Start Serial: D800

1шт.

14

84607479

CLAMP

1шт.

15

87673373

THRUST BEARING,25mm ID x 62mm OD x 22.5mm W

, Start Serial: D800

1шт.

16

87677406

PROTECTING COVER

, Start Serial: D800

1шт.

17

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

, Start Serial: D800

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D800

1шт.

19

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D800

1шт.
