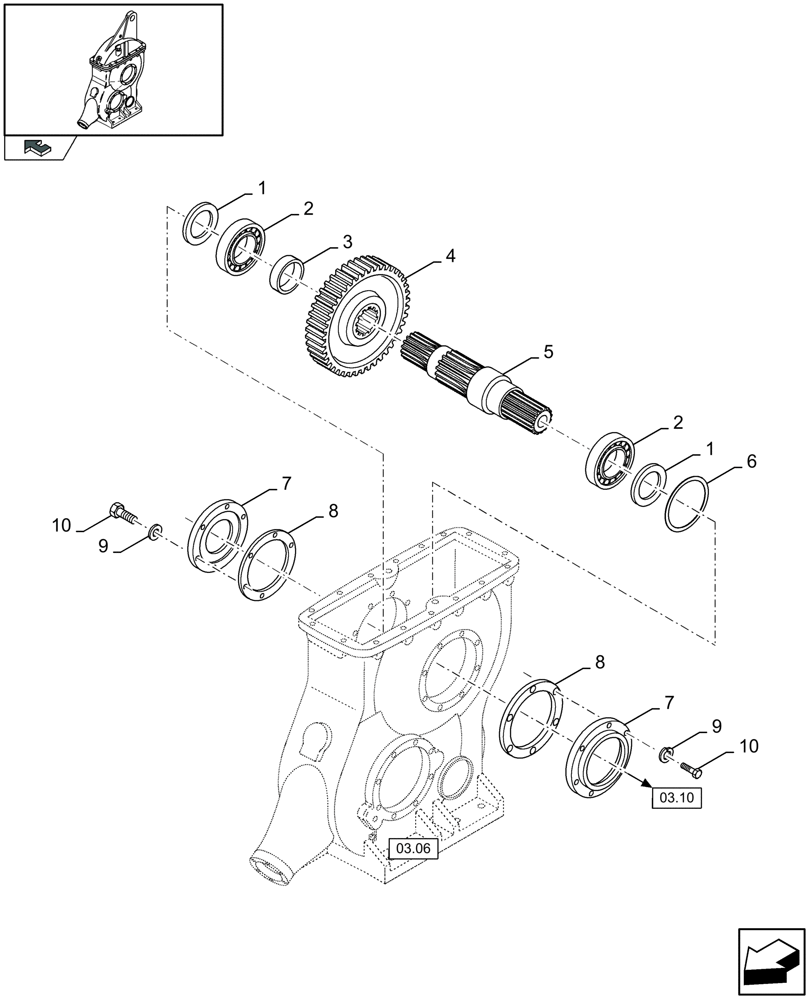

Запчасти Case IH LB433S (03.09[01]) - MAIN GEARBOX, ARM SHAFT (03) - MAIN GEARBOX

1

84074505

SEALING RING

SEALRING

2шт.

2

84000814

ROLLER BEARING,140mm ID x 210mm OD x 45mm W

2шт.

3

87718403

SPACER

1шт.

4

84074491

GEAR

1шт.

5

87718402

SHAFT

1шт.

6

84074501

SET OF RINGS

1шт.

7

87688201

COVER

2шт.

8

87688225

O-RING,209.1mm ID x 3.53mm Width

2шт.

9

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

16шт.

10

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

, Serial Range: -C719

16шт.

10

379753

BOLT,Hex, M12 x 35mm, Cl 10.9

, Start Serial: D720

16шт.
