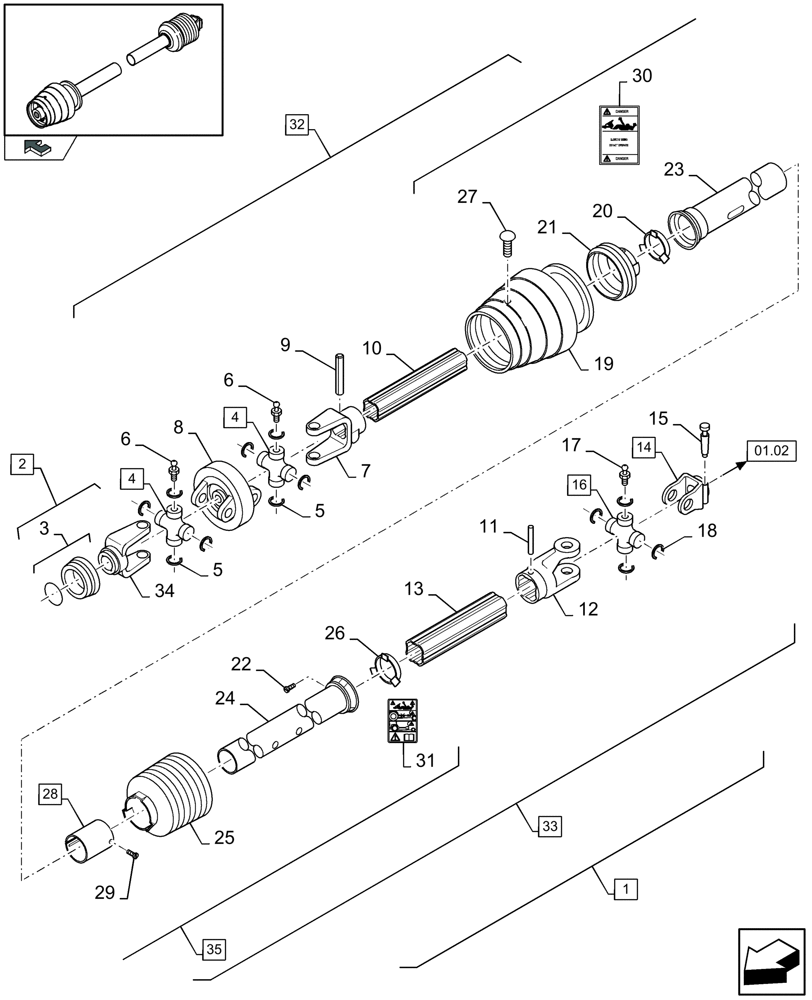

Справочник запчастей Case IH LB433S (01.01[01]) - POWER TAKE-OFF, FRONT (01) - POWER TAKE OFF со схемами

1

87598374

PTO

(1 TO 35), Serial Range: -C895

1шт.

FOR 6 SPLINES ONLY

1шт.

1

84483318

PTO

(1 TO 35), Serial Range: -F896929

1шт.

FOR 6 SPLINES ONLY

1шт.

1

84483322

PTO

(1 TO 35), Start Serial: D930

1шт.

FOR 6 SPLINES ONLY

1шт.

1

87598373

PTO

(1 TO 35), Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

1

84483317

PTO

(1 TO 35), Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

1

84483321

PTO

(1 TO 35), Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

1

87542497

PTO

(1 TO 35), Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

1

84483319

PTO

(1 TO 35), Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

1

84483323

PTO

(1 TO 35), Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

2

87716630

YOKE

(3, 34)

1шт.

FOR 6 SPLINES ONLY

1шт.

2

87716676

YOKE

(3, 34)

1шт.

FOR 20 SPLINES ONLY

1шт.

2

87716702

YOKE

(3, 34)

1шт.

FOR 21 SPLINES ONLY

1шт.

3

87587209

KIT

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

3

87716681

KIT

1шт.

FOR 20 SPLINES ONLY

1шт.

4

87716631

KIT

(5, 6), Serial Range: -C929

2шт.

4

87558240

U-JOINT SPIDER,30.2mm Cap Dia, 106mm L, Grease-able

(5, 6), Start Serial: D930

2шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

87716632

YOKE

, Serial Range: -C929

1шт.

7

47436044

YOKE

, Start Serial: D930

1шт.

8

87716633

BODY

1шт.

9

87716634

ROLL PIN

, Serial Range: -C929

1шт.

9

87517826

ROLL PIN,10.5mm OD x 95mm L

, Start Serial: D930

1шт.

10

87716635

PTO SHAFT

, Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

10

84519870

TUBE

, Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

10

47436393

TUBE

, Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

10

87716677

PTO SHAFT

, Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

10

84519870

TUBE

, Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

10

47436045

TUBE

, Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

11

84976975

ROLL PIN

, Serial Range: -C929

1шт.

11

47436039

, Start Serial: D930

1шт.

12

87716339

YOKE

, Serial Range: -C929

1шт.

12

47436041

TUBE

, Start Serial: D930

1шт.

13

87716636

PTO SHAFT

, Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

13

84519874

TUBE

, Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

13

47436396

TUBE

, Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

13

87716678

PTO SHAFT

, Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

13

84519874

TUBE

, Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

13

47436046

TUBE

, Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

14

87716340

YOKE

(15)

1шт.

15

87587210

KIT

1шт.

16

87716337

SPIDER

(17, 18)

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

19

87716637

BELLOWS,223mm L

1шт.

20

87716342

SUPPORT

, Serial Range: -C929

1шт.

20

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

, Start Serial: D930

1шт.

21

87716638

SUPPORT

1шт.

22

87587200

SELF-TAP SCREW

, Serial Range: -C895

6шт.

22

84519945

SHIELD

, Serial Range: -F896929

6шт.

22

47436040

SELF-TAP SCREW

, Start Serial: D930

6шт.

23

87716639

OUTER SHIELD

, Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

23

84519946

SHIELD

, Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

23

47436398

TUBE

, Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

23

87716679

OUTER SHIELD

, Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

23

84519946

SHIELD

, Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

23

47436047

TUBE

, Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

24

87716640

INNER SHIELD

, Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

24

84519948

SHIELD

, Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

24

47436400

TUBE

, Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

24

87716680

INNER SHIELD

, Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

24

84519948

SHIELD

, Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

24

47436048

TUBE

, Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

25

87716642

BELLOWS,128mm L

1шт.

26

87716346

SUPPORT

, Serial Range: -C929

1шт.

26

86979196

BEARING,86mm ID x 132mm OD x 12mm H

, Start Serial: D930

1шт.

27

87716643

SELF-TAP SCREW

6шт.

28

87716644

COLLAR

(29)

1шт.

29

87716645

SCREW

2шт.

30

87716348

DANGER DECAL

1шт.

31

84078329

DECAL

1шт.

32

87716648

FRONT PTO ASSY

(2 TO 10, 19 TO 23, 27, 34), Serial Range: -C895

1шт.

FOR 6 SPLINES ONLY

1шт.

32

84520342

SHAFT

(2 TO 10, 19 TO 23, 27, 34), Serial Range: -F896929

1шт.

FOR 6 SPLINES ONLY

1шт.

32

47436401

SHAFT

(2 TO 10, 19 TO 23, 27, 34), Start Serial: D930

1шт.

FOR 6 SPLINES ONLY

1шт.

32

87716682

FRONT PTO ASSY

(2 TO 10, 19 TO 23, 27, 34), Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

32

84519952

SHAFT

(2 TO 10, 19 TO 23, 27, 34), Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

32

47457830

SHAFT

(2 TO 10, 19 TO 23, 27, 34), Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

32

87716703

FRONT PTO ASSY

(2 TO 10, 19 TO 23, 27, 34), Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

32

84520376

SHAFT

(2 TO 10, 19 TO 23, 27, 34), Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

32

47436401

SHAFT

(2 TO 10, 19 TO 23, 27, 34), Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

33

87716649

REAR PTO ASSY

(11 TO 18, 24 TO 26, 28, 29), Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

33

84519954

SHAFT

(11 TO 18, 24 TO 26, 28, 29), Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

33

47436403

SHAFT

(11 TO 18, 24 TO 26, 28, 29), Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

33

87716683

REAR PTO ASSY

(11 TO 18, 24 TO 26, 28, 29), Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

33

84519954

SHAFT

(11 TO 18, 24 TO 26, 28, 29), Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

33

47436050

SHAFT

(11 TO 18, 24 TO 26, 28, 29), Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

34

NSS

NOT SOLD SEPARAT

1шт.

35

87716650

KIT

(19 TO 31), Serial Range: -C895

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

35

84519955

KIT

(19 TO 31), Serial Range: -F896929

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

35

47436390

FIP KIT

(19 TO 31), Start Serial: D930

1шт.

FOR 21 SPLINES ONLY

1шт.

FOR 6 SPLINES ONLY

1шт.

35

87716684

KIT

(19 TO 31), Serial Range: -C895

1шт.

FOR 20 SPLINES ONLY

1шт.

35

84519955

KIT

(19 TO 31), Serial Range: -F896929

1шт.

FOR 20 SPLINES ONLY

1шт.

35

47436051

FIP KIT

(19 TO 31), Start Serial: D930

1шт.

FOR 20 SPLINES ONLY

1шт.

Запчасти Case IH LB433S (01.01[01]) - POWER TAKE-OFF, FRONT (01) - POWER TAKE OFF
