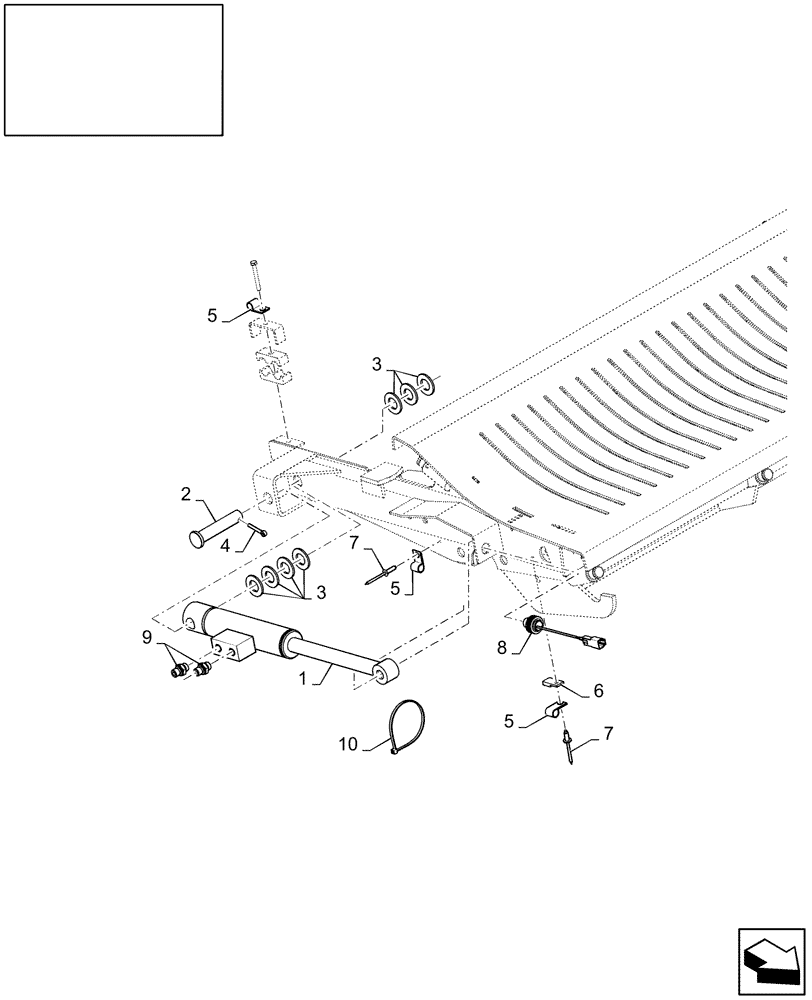

Запчасти Case IH LB433S (18.87727122[03]) - DIA : KNIFE DRAWER KIT - KNIFE DRAWER FOR 33 KNIVES (18) - ACCESSORIES

87727122

DIA KIT, HARVESTER

1шт.

1

84461532

HYDRAULIC CYLINDER,Double Acting, 25mm Rod, 120mm Stroke

1шт.

2

9501786

PIN,20mm OD x 100mm L

1шт.

3

378247

WASHER,21mm ID x 39mm OD x 3mm Thk

7шт.

4

412686

COTTER PIN,M5 x 32

1шт.

5

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

6

84058832

CLIP

1шт.

7

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

2шт.

8

87680717

SENSOR

B10 - STATUS CUTTER

1шт.

9

84037257

HYD CONNECTOR

2шт.

10

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

87369262

1шт.
