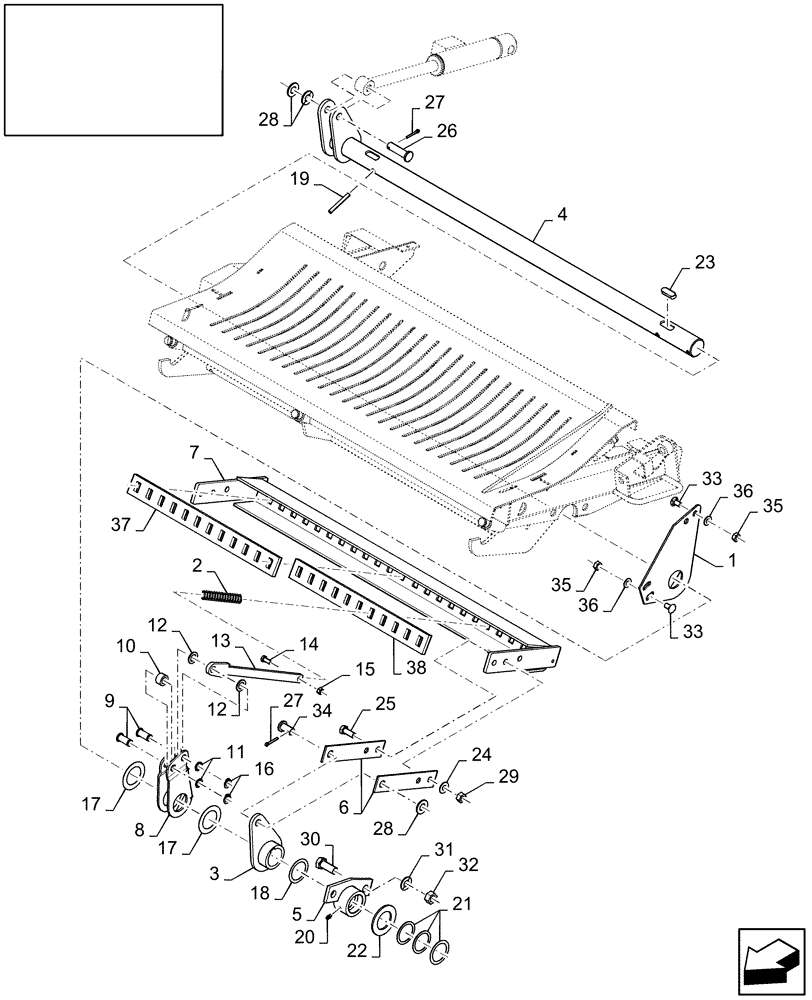

Запчасти Case IH LB433S (18.87727122[02]) - DIA : KNIFE DRAWER KIT - KNIFE DRAWER FOR 33 KNIVES (18) - ACCESSORIES

87727122

DIA KIT, HARVESTER

1шт.

1

84068635

PLATE

1шт.

2

84038524

SPRING,Compression, 1.26" OD x 13.39" L

33шт.

3

84039463

LEVER

2шт.

4

84039315

SHAFT

1шт.

5

84039452

SUPPORT

2шт.

6

84039309

COVER PLATE

4шт.

7

87745298

U-BRACKET

1шт.

8

84068634

LEVER

33шт.

9

84267351

PIN,15mm OD x 35mm L

66шт.

10

84041936

ROLLER,25mm OD x 15mm L

33шт.

11

84043973

FRICTION WASHER,15mm ID x 21mm OD x 1.5mm Thk

66шт.

12

140090

WASHER

66шт.

13

84607256

TOOL

33шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

33шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

33шт.

16

84041862

CIRCLIP

66шт.

17

84005527

WASHER,46mm ID x 70mm OD x 1mm Thk

66шт.

18

NLS

NO LONGER SERVICED

4шт.

19

412202

LOCK PIN,8mm OD x 65mm L, Slotted

3шт.

20

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

21

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

6шт.

22

84814169

WASHER,46mm ID x 75mm OD x 4mm Thk

1шт.

23

170019

KEY,14mm x 9mm x 40mm

2шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

25

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

26

9850761

CLEVIS PIN,M16 x 60

1шт.

27

412685

COTTER PIN,M4 x 32

3шт.

28

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

4шт.

29

9706685

NUT,M12 x 1.75, Cl 8

4шт.

30

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

31

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

32

100020

NUT,M16 x 2.0, Cl 8

4шт.

33

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

34

380840

CLEVIS PIN,M16 x 30

2шт.

35

100016

NUT,M10 x 1.5, Cl 8

4шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

37

84045049

COVER PLATE

1шт.

38

84045050

COVER PLATE

1шт.

86503661

GREASE

1шт.
