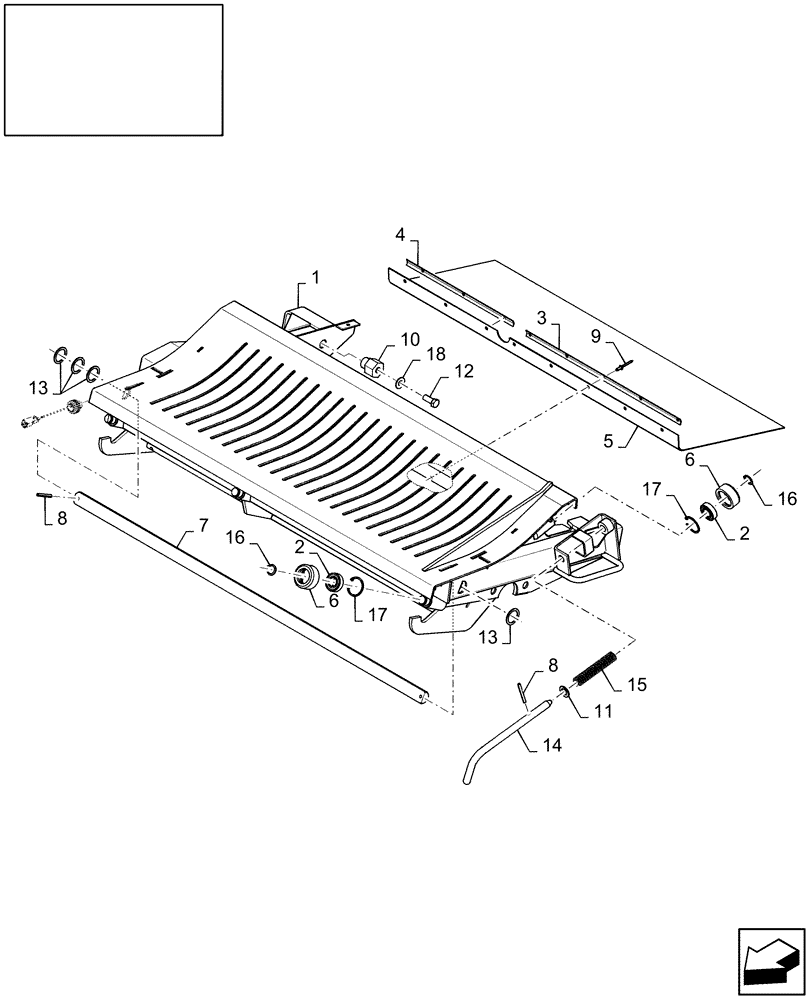

Запчасти Case IH LB433S (18.87727122[01]) - DIA : KNIFE DRAWER KIT - KNIFE DRAWER FOR 33 KNIVES (18) - ACCESSORIES

87727122

DIA KIT, HARVESTER

1шт.

1

87745279

KNIFE HOLDER

1шт.

2

86629499

BALL BEARING,20mm ID x 42mm OD x 12mm W

8шт.

3

84042244

FIXING PLATE

1шт.

4

84042245

FIXING PLATE

2шт.

5

84042270

CANVAS

1шт.

6

84041706

ROLLER

8шт.

7

87631919

ROD

1шт.

8

333960

LOCK PIN,6mm OD x 50mm L, Slotted

3шт.

9

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

10шт.

10

84039310

HEX PLUG,44mm L

2шт.

11

140090

WASHER

1шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

13

140109

WASHER,31mm ID x 40mm OD x 2mm Thk

2шт.

14

84039459

PIN,16mm OD

1шт.

15

84043589

SPRING

1шт.

16

370024

CIRCLIP,M20, Ext

8шт.

17

300645

SNAP RING,M42, Int

8шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.
