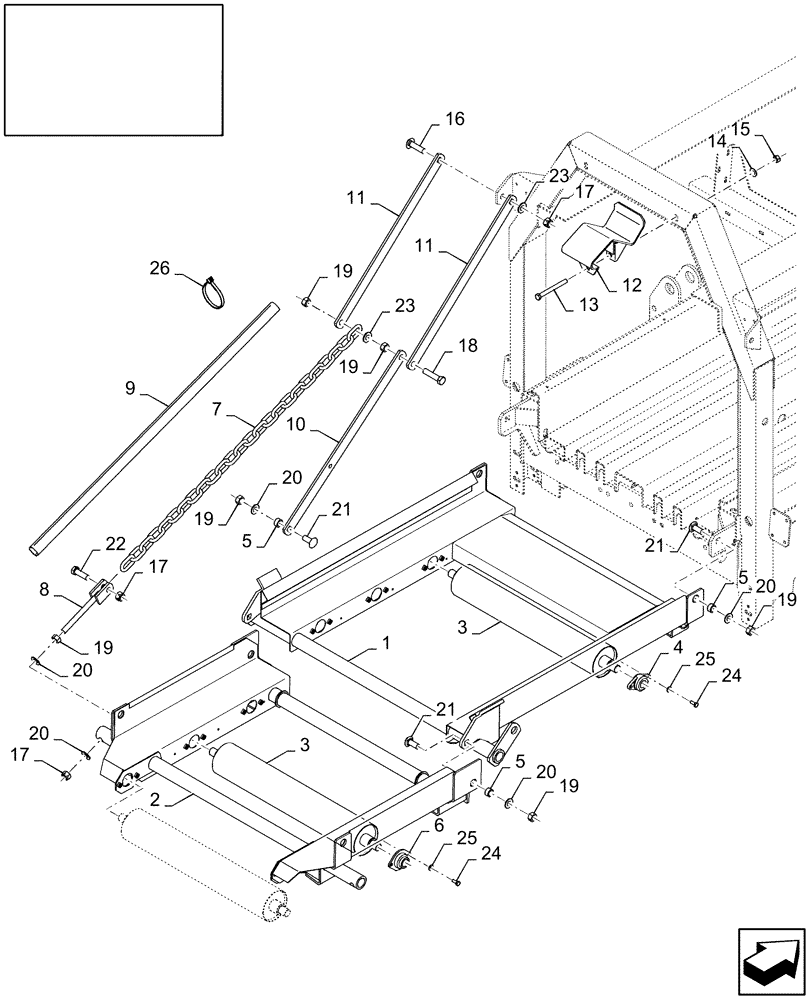

Запчасти Case IH LB433S (18.87485072[02]) - DIA : ROLLER BALE CHUTE - SEASON 2009 (18) - ACCESSORIES

87485072

DIA KIT, HARVESTER

1шт.

1

87633051

FRAME

1шт.

2

87723507

FRAME

1шт.

3

84032863

ROLLER,108mm OD x 1127mm L

5шт.

4

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

8шт.

5

9837933

SPACER,17mm ID x 25.4mm OD x 12.5mm L

6шт.

6

9837806

FLANGED BEARING,25mm ID

2шт.

7

84074138

CHAIN,1190mm L

2шт.

8

9512549

ROD

2шт.

9

80292267

BAND

L= 2.4 M

1шт.

10

84074054

SUPPORT

2шт.

11

84074051

SUPPORT

4шт.

12

84130683

SUPPORT

2шт.

13

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

2шт.

17

86000441

NUT,M16 x 2.0, Cl 8

6шт.

18

320246

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

2шт.

19

100020

NUT,M16 x 2.0, Cl 8

12шт.

20

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

10шт.

21

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

6шт.

22

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

23

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

4шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

26

396718

STRAP

4шт.
