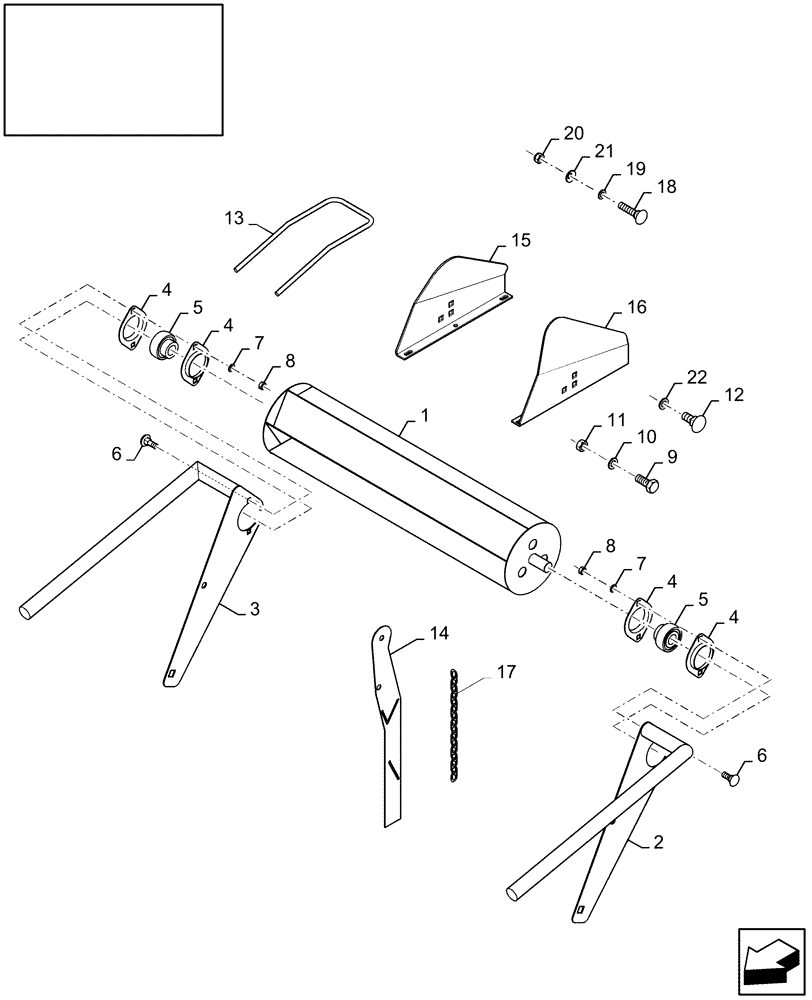

Запчасти Case IH LB433S (18.87355680[01]) - DIA : ROLLER WINDGUARD KIT - 2.25M PICK-UP (18) - ACCESSORIES

87355680

DIA KIT, HARVESTER

1шт.

1

87341398

ROLLER

1шт.

2

87742048

BRACKET, SUPPORTING

1шт.

3

87742046

BRACKET, SUPPORTING

1шт.

4

86548974

FLANGE,Bearing

4шт.

5

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

6

120037

CARRIAGE BOLT,Short Nk, M8 x 20mm, Cl 8.8, Full Thd

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

9706690

NUT,M8 x 1.25, Cl 8

4шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

11

9706685

NUT,M12 x 1.75, Cl 8

2шт.

12

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

13

87377536

TINE

4шт.

14

87379775

CALIPER

1шт.

15

87382331

PLATE

1шт.

16

87382333

PLATE

1шт.

17

84007724

CHAIN,1276mm L

1шт.

18

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

3шт.

19

140017

WASHER,M10 x 20mm OD x 2mm Thk

12шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

22

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.
