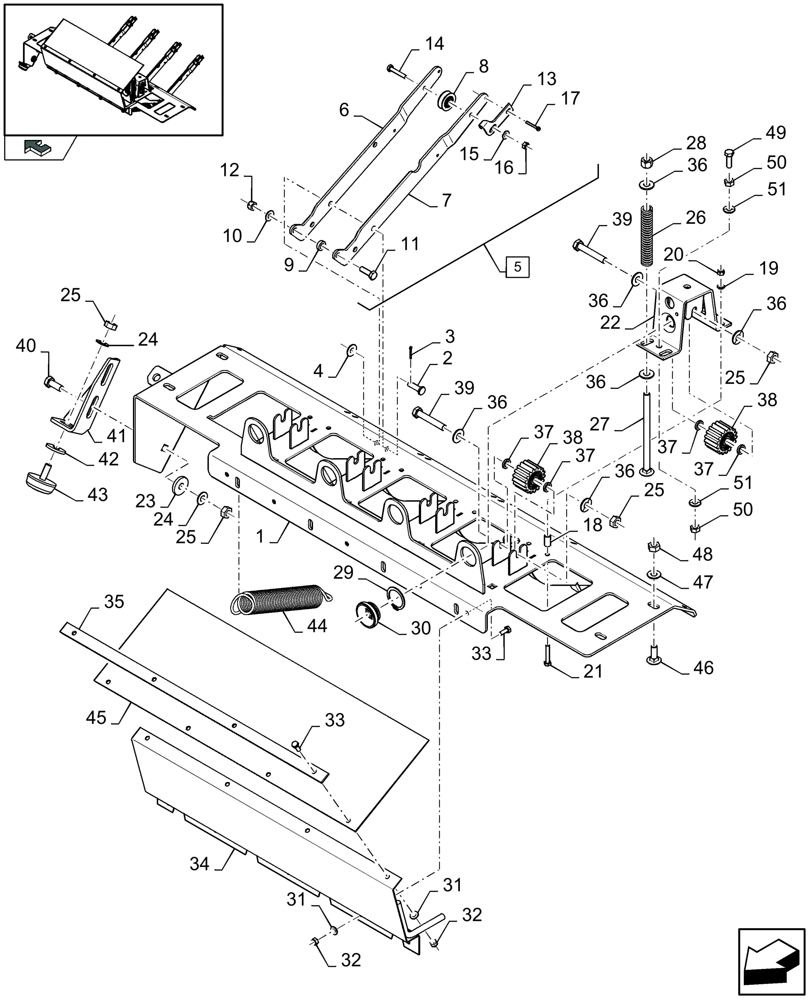

Справочник запчастей Case IH LB433S (15.13[01]) - LOWER TWINE TENSIONERS TANDEM AXLE (15) - KNOTTER /WRAPPER со схемами

1

87692045

MOUNTING PLATE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

87722361

MOUNTING PLATE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

335040

CLEVIS PIN,M8 x 28mm OAL

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

2

335040

CLEVIS PIN,M8 x 28mm OAL

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

3

9512667

COTTER PIN,M2 x 20mm OAL

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

3

9512667

COTTER PIN,M2 x 20mm OAL

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

4

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

4

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

5

87731161

ARM

(6 TO 17)

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

5

87731161

ARM

(6 TO 17)

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

6

87719626

ARM

1шт.

7

87719628

ARM

1шт.

8

87521132

ROPE GUIDE ROLLER,31.5mm OD x 12mm L

1шт.

9

441178

WASHER

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

13

84032625

SCRAPER BLADE

, Serial Range: -C867

1шт.

13

84283348

SCRAPER

, Start Serial: D868

1шт.

14

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

353308

NUT,M6 x 1.0, Cl 8

1шт.

17

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

, Serial Range: -C719

1шт.

17

130005

COTTER PIN,M3.2 x 32

, Start Serial: D720

1шт.

18

9838894

SPACER,6.83mm ID x 10.29mm OD x 19mm L

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

18

9838894

SPACER,6.83mm ID x 10.29mm OD x 19mm L

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

13шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

19шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

20

353308

NUT,M6 x 1.0, Cl 8

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

20

353308

NUT,M6 x 1.0, Cl 8

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

21

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

21

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

22

87528187

BRACKET

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

22

87528187

BRACKET

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

23

9839231

WASHER,11mm ID x 32mm OD x 5mm Thk

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

25

100016

NUT,M10 x 1.5, Cl 8

11шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

15шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

26

9838888

SPRING

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

26

9838888

SPRING

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

27

84018757

BOLT,M10 x 1.5 x 160mm, CL 4.6

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

27

84018757

BOLT,M10 x 1.5 x 160mm, CL 4.6

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

28

412141

NUT,M10 x 1.5, Cl 8

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

28

412141

NUT,M10 x 1.5, Cl 8

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

29

370004

SNAP RING,M35 x 1.5mm Thk, External

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

29

370004

SNAP RING,M35 x 1.5mm Thk, External

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

30

87331610

GUIDE

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

30

87331610

GUIDE

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

13шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

32

9706755

NUT,M6, Cl 8

9шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

32

9706755

NUT,M6, Cl 8

13шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

33

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

9шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

33

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

13шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

34

84078873

PLATE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

34

84817172

PLATE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

35

84078867

FIXING PLATE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

35

84078865

FIXING PLATE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

36

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

32шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

36

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

48шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

37

87391155

SPACER,10.5mm ID x 16mm OD x 3mm L

16шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

37

87391155

SPACER,10.5mm ID x 16mm OD x 3mm L

24шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

38

87382295

GEAR

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

38

87382295

GEAR

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

39

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

39

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

12шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

40

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

41

87713018

STOP

1шт.

42

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

43

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

1шт.

44

87729344

TENSION SPRING

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

44

87729344

TENSION SPRING

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

45

84078868

CANVAS

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

45

84078869

CANVAS

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

46

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

, Start Serial: D722

4шт.

47

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D722

4шт.

48

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: D722

4шт.

49

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

, Start Serial: D722

1шт.

50

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D722

1шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D722

1шт.
