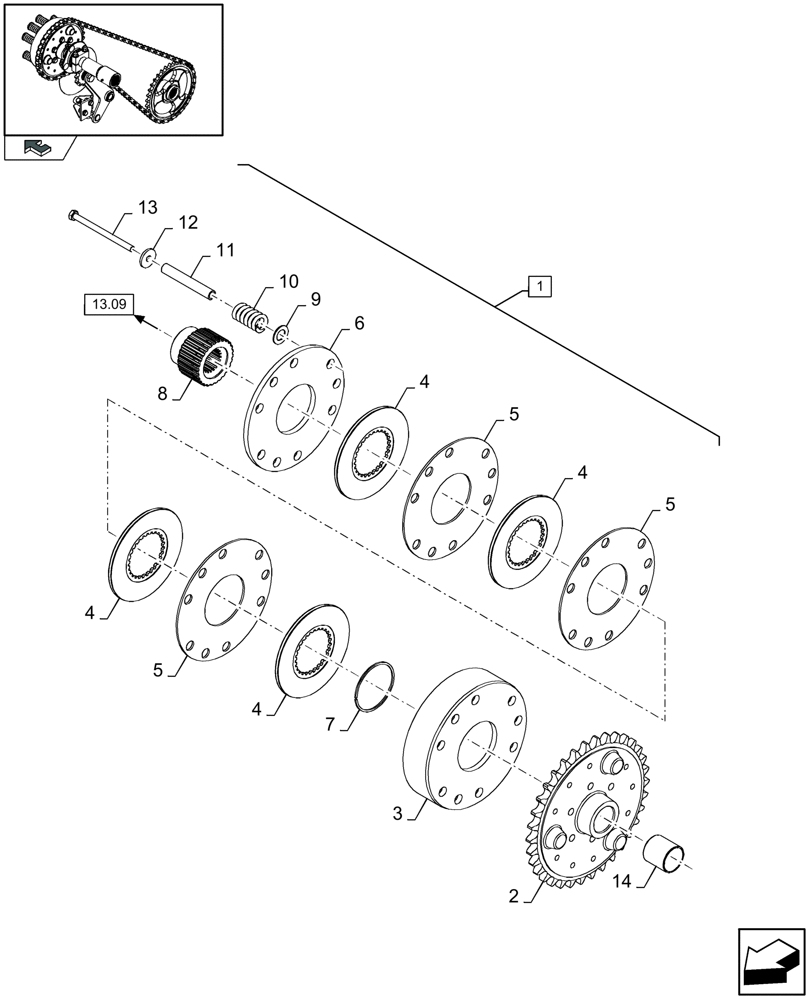

Запчасти Case IH LB433S (13.10[01]) - PACKER CLUTCH (13) - FEEDER

1

84045305

CLUTCH

(2 to 14)

1шт.

2

87394095

DRIVEN SPROCKET

1шт.

3

84041823

FLANGE

, Serial Range: -C839

1шт.

3

84800488

CLUTCH DISC

, Start Serial: D840

1шт.

4

261798

CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk

4шт.

5

84041824

DISC,97mm ID x 230mm OD x 3.5mm Thk

3шт.

6

84041827

CLUTCH DISC

1шт.

7

84041833

CIRCLIP

1шт.

8

84041818

GEAR

1шт.

9

140096

WASHER

20.5 MM

1шт.

10

322270

SPRING

9шт.

11

84041820

BUSHING,12.5mm ID x 17.2mm OD x 114.5mm L

9шт.

12

9832748

WASHER

11 MM

9шт.

13

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

9шт.

14

84045306

BUSHING,44.98mm ID x 50.02mm OD x 50mm L

1шт.
