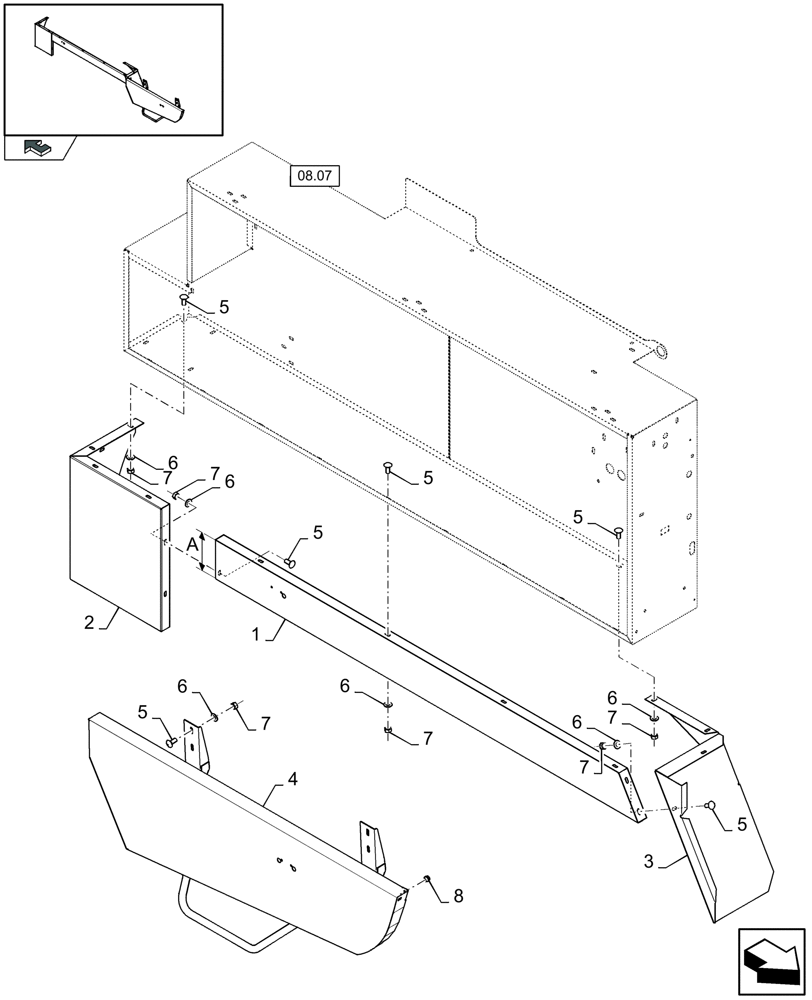

Запчасти Case IH LB433S (08.12[01]) - LOWER SHIELDS, TANDEM AXLE, RH (08) - SHEET METAL/DECALS

1

84819344

GUARD

A= 160 MM, Serial Range: -C835

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

1

84819363

GUARD

A= 260 MM, Start Serial: D836

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

1

84819363

GUARD

A= 260 MM, Serial Range: -C835

1шт.

FOR LB323S, LB323P, LB333S, LB333P, LB423S, LB433S ONLY

1шт.

1

84819344

GUARD

A= 160 MM, Start Serial: D836

1шт.

FOR LB323S, LB323P, LB333S, LB333P, LB423S, LB433S ONLY

1шт.

2

87758023

COVER PLATE

1шт.

3

84819353

GUARD

1шт.

4

87756149

DOOR

1шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

18шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

7

9706690

NUT,M8 x 1.25, Cl 8

18шт.

8

336455

PLUG

3шт.
