Запчасти Case IH LB433S (06.528[02]) - CABLE HARNESS: 84243503 - D814 (06) - ELECTRICAL SYSTEMS

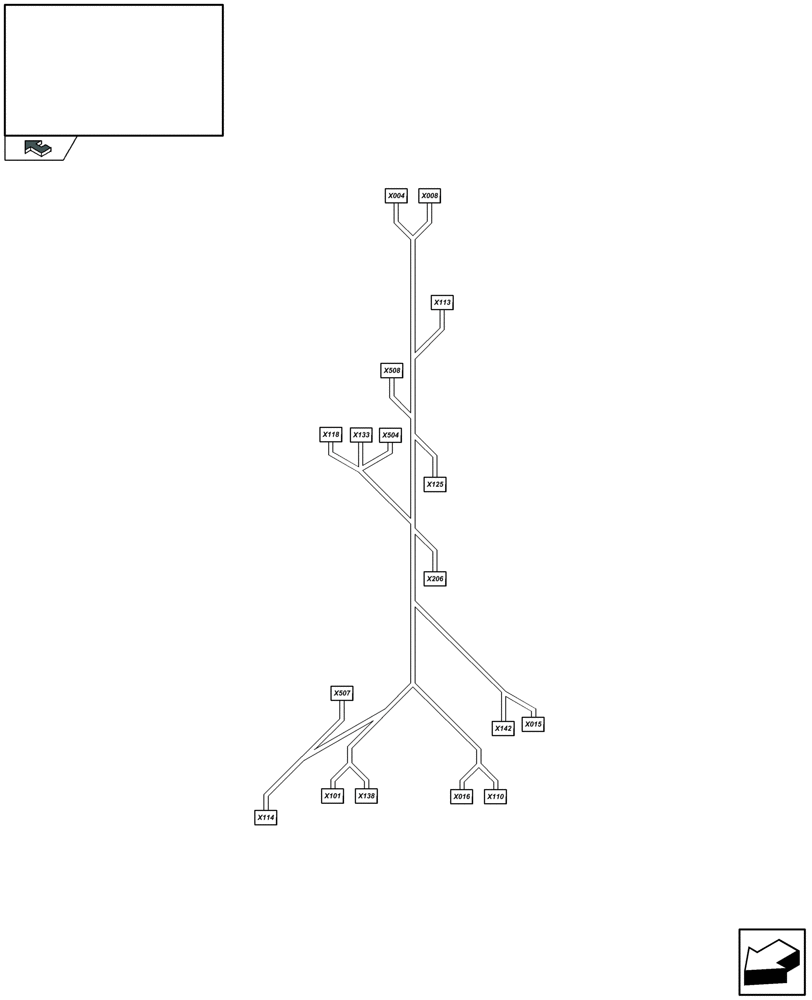

Схема запчастей Case IH LB433S - (06.528[02]) - CABLE HARNESS: 84243503 - D814 (06) - ELECTRICAL SYSTEMS
x125
x016
x504
x507
x206
x114
x138
x110
x118
x015
x133
x142
x101
x004
x508
x008
home
x113

Артикул

Название

Примечание

Количество

x004

87318220

TERMINAL CONNECTOR,Female, 0.50 - 1 mm2

X4

1шт.

87318217

MULTIPOLE CONNECTOR,Female, 21 Pole

1шт.

87319098

LOCKING DEVICE

1шт.

x008

87318220

TERMINAL CONNECTOR,Female, 0.50 - 1 mm2

X8

1шт.

87318221

TERMINAL CONNECTOR,Female, 1 - 2.5 mm2

1шт.

84460787

MULTIPOLE CONNECTOR,Female, 21 Pole

1шт.

87319098

LOCKING DEVICE

1шт.

x015

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X15

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x016

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X16

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

86500166

ELEC CONNECTOR

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

x101

84078682

TERMINAL CONNECTOR,Tin, 0.8 - 1.0mm

X101

1шт.

84078681

WIRE CONNECTOR,Female

1шт.

x110

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X110

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x113

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X113

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x114

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X114

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x118

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X118

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

86500166

ELEC CONNECTOR

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

x125

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X125

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x133

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X133

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x138

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X138

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

x142

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X142

1шт.

84074642

WIRE CONNECTOR,Male

1шт.

9861378

CONTACT HOUSING

1шт.

x206

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

X206

1шт.

84607242

SEAL

1шт.

84806091

WIRE CONNECTOR,Female, 3 Pin

1шт.

x504

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X504

1шт.

84074637

WIRE CONNECTOR,Female

1шт.

84074640

LOCKING TAB,Wedge Lock

1шт.

84074636

WIRE CONNECTOR,Male

1шт.

x507

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X507

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x508

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

X508

1шт.

446133

ELEC CONNECTOR,Female, 2 Pin

1шт.

Выбрано товаров: 57
