(00.00LB030[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP AUGER DRIVE

Запчасти Case IH LB433R (00.00LB030[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP AUGER DRIVE (00) - GENERAL

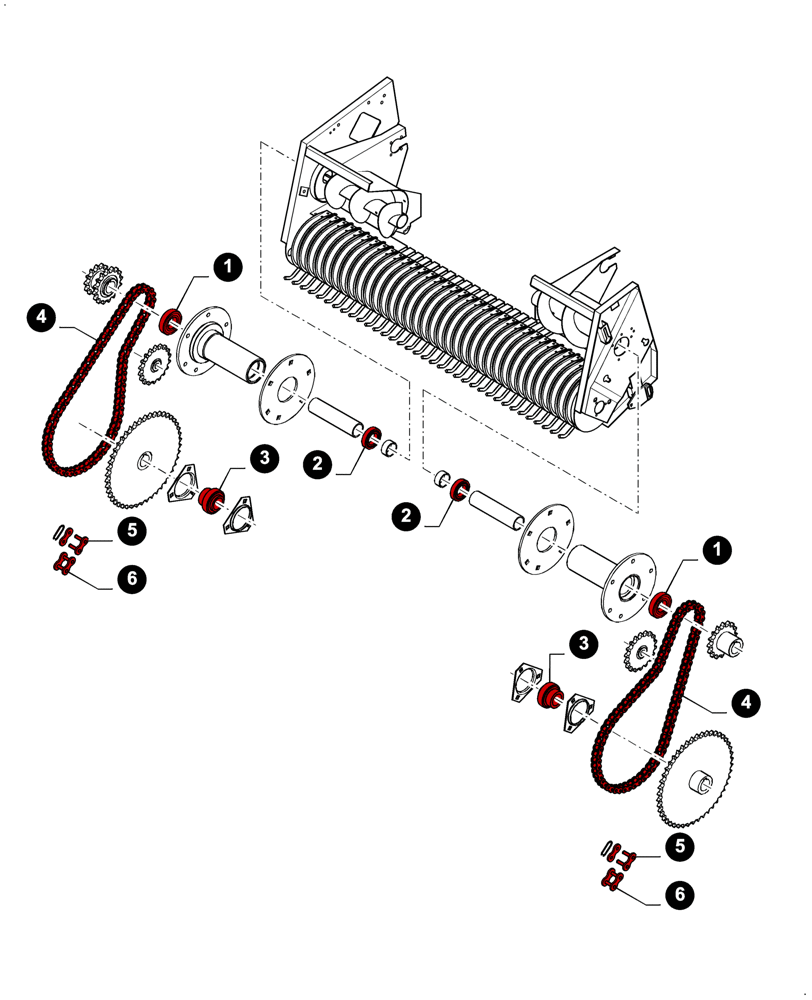

Схема запчастей Case IH LB433R - (00.00LB030[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP AUGER DRIVE (00) - GENERAL
5
1
6
3
3
5
4
2
1
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

2

364908

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

3

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

2шт.

4

84007380

CHAIN,Roller, 72 Links x 19.05mm = 1371.6mm

(5)

2шт.

5

165590

CONNECTING LINK

2шт.

6

25808

LINK CHAIN

1шт.

Выбрано товаров: 6
