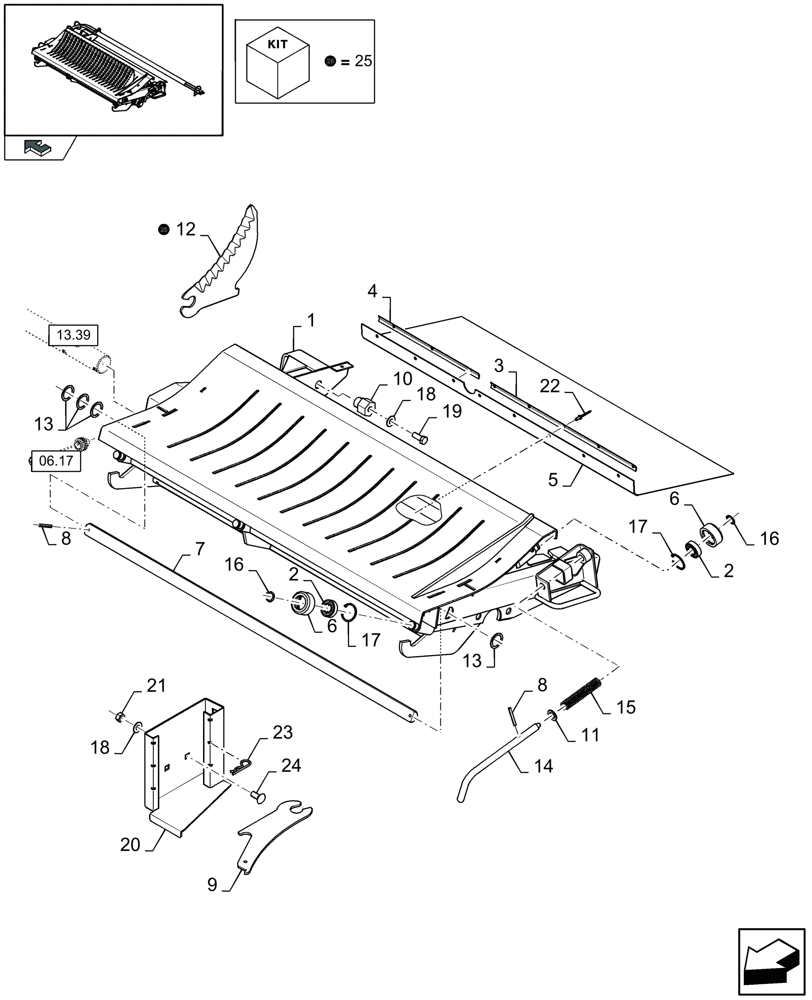

Запчасти Case IH LB433R (13.38[01]) - KNIFE DRAWER MEDIUM CUT, KNIVES (13) - FEEDER

1

87637764

KNIFE HOLDER

1шт.

FOR LB323R, LB333R ONLY

1шт.

1

87631513

KNIFE HOLDER

1шт.

FOR LB423R, LB433R ONLY

1шт.

2

86629499

BALL BEARING,20mm ID x 42mm OD x 12mm W

6шт.

FOR LB323R, LB333R ONLY

1шт.

2

86629499

BALL BEARING,20mm ID x 42mm OD x 12mm W

8шт.

FOR LB423R, LB433R ONLY

1шт.

3

84074326

FIXING PLATE

1шт.

FOR LB323R, LB333R ONLY

1шт.

3

84042244

FIXING PLATE

1шт.

FOR LB423R, LB433R ONLY

1шт.

4

84042245

FIXING PLATE

1шт.

FOR LB323R, LB333R ONLY

1шт.

4

84042245

FIXING PLATE

2шт.

FOR LB423R, LB433R ONLY

1шт.

5

84074192

CANVAS,400mm W x 940mm L

1шт.

FOR LB323R, LB333R ONLY

1шт.

5

84042270

CANVAS

1шт.

FOR LB423R, LB433R ONLY

1шт.

6

84041706

ROLLER

6шт.

FOR LB323R, LB333R ONLY

1шт.

6

84041706

ROLLER

8шт.

FOR LB423R, LB433R ONLY

1шт.

7

87638109

ROD

1шт.

FOR LB323R, LB333R ONLY

1шт.

7

87631919

ROD

1шт.

FOR LB423R, LB433R ONLY

1шт.

8

333960

LOCK PIN,6mm OD x 50mm L, Slotted

3шт.

9

84056868

COVER PLATE

11шт.

FOR LB323R, LB333R ONLY

1шт.

9

84056868

COVER PLATE

17шт.

FOR LB423R, LB433R ONLY

1шт.

10

84039310

HEX PLUG,44mm L

2шт.

11

140090

WASHER

1шт.

12

84058219

KNIFE

11шт.

HARD-FACED ONLY

1шт.

FOR LB323R, LB333R ONLY

1шт.

12

84056505

KNIFE

11шт.

FOR LB323R, LB333R ONLY

1шт.

12

84058219

KNIFE

17шт.

HARD-FACED ONLY

1шт.

FOR LB423R, LB433R ONLY

1шт.

12

84056505

KNIFE

17шт.

FOR LB423R, LB433R ONLY

1шт.

13

140109

WASHER,31mm ID x 40mm OD x 2mm Thk

1шт.

14

84039459

PIN,16mm OD

1шт.

15

84043589

SPRING

1шт.

16

370024

CIRCLIP,M20, Ext

6шт.

FOR LB323R, LB333R ONLY

1шт.

16

370024

CIRCLIP,M20, Ext

8шт.

FOR LB423R, LB433R ONLY

1шт.

17

300645

SNAP RING,M42, Int

6шт.

FOR LB323R, LB333R ONLY

1шт.

17

300645

SNAP RING,M42, Int

8шт.

FOR LB423R, LB433R ONLY

1шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

19

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

20

84801665

RACK

1шт.

21

9706685

NUT,M12 x 1.75, Cl 8

2шт.

22

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

8шт.

FOR LB323R, LB333R ONLY

1шт.

22

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

10шт.

FOR LB423R, LB433R ONLY

1шт.

23

437424

COTTER PIN

2шт.

24

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

25

87727119

DIA KIT, HARVESTER

1шт.

KIT OF 11 HARD-FACED KNIVES

1шт.

25

87727120

DIA KIT, HARVESTER

1шт.

KIT OF 17 HARD-FACED KNIVES

1шт.
