Запчасти Case IH LB433R (13.15[01]) - ROTOR DRIVE (13) - FEEDER

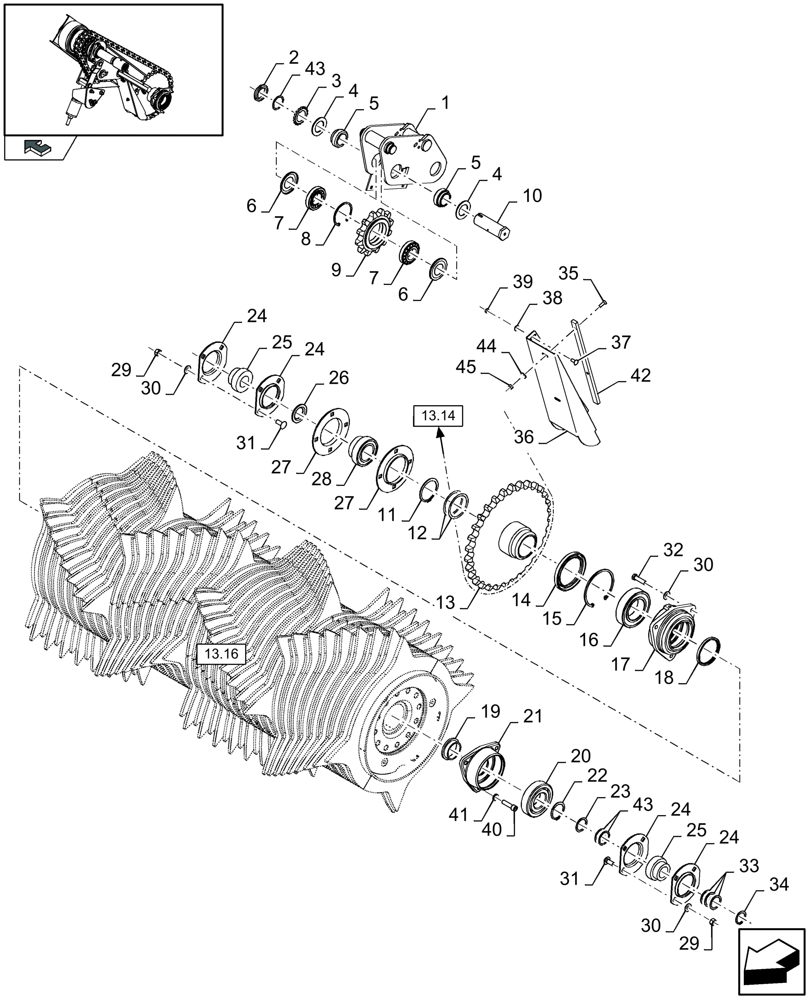

Схема запчастей Case IH LB433R - (13.15[01]) - ROTOR DRIVE (13) - FEEDER
31
18
13.16
27
16
5
29
15
7
6
40
24
34
8
4
9
11
37
27
12
30
45
36
41
home
14
13.14
20
30
2
24
24
29
42
23
7
17
1
6
19
26
24
13
30
5
32
10
43
35
28
25
4
3
22
25
39
21
43
33
44
38
31

Артикул

Название

Примечание

Количество

1

84037903

IDLER LEVER

1шт.

2

543835

LOCK NUT

M40 x 1.5

2шт.

3

543836

LOCK WASHER

40 MM

2шт.

4

9838253

WASHER,40.5mm ID x 65mm OD x 2.99mm Thk

1шт.

5

84037898

BUSHING,40mm ID x 60mm OD x 27.7mm L

4шт.

6

84039090

RING,40mm ID x 77.5mm OD x 0.3mm Thk

4шт.

7

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

4шт.

8

300633

SNAP RING,M80, Internal

2шт.

9

84037899

DRIVEN SPROCKET,12T

2шт.

10

84078080

SHAFT

1шт.

11

300637

SNAP RING,M75, Ext

1шт.

12

84000263

ADJUSTING PLATE,76mm ID x 90mm OD x 0.25mm Thk

1шт.

13

84074588

DRIVEN SPROCKET

1шт.

14

84074233

SEAL,100mm ID x 135mm OD x 13mm Thk

SEALRING

1шт.

15

370014

SNAP RING,M130, Internal

1шт.

16

84074235

SPHERICAL BEARING,75mm ID x 130mm OD x 31mm W

1шт.

17

84074364

BEARING HOUSING,95 mm ID x 152 mm OD x 76 mm

1шт.

18

84004409

SEAL,85mm ID x 100mm OD x 9mm Thk

1шт.

19

84037935

RING

1шт.

20

412274

BALL BEARING,55mm ID x 120mm OD x 29mm W

1шт.

21

433754

BEARING HOUSING

1шт.

22

327911

CIRCLIP,55mm ID

1шт.

23

84014579

WASHER,40mm ID x 50mm OD x 2mm Thk

1шт.

24

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

25

552945

BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm

(48)

2шт.

26

84074554

RING

1шт.

27

853175

FLANGE

2шт.

28

9839285

BALL BEARING,55mm ID x 100mm OD x 24mm W

2шт.

29

9706685

NUT,M12 x 1.75, Cl 8

1шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

31

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

32

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

3шт.

33

442203

WASHER,41mm ID x 50mm OD x 0.91mm Thk

1шт.

34

370006

SNAP RING,M40, Ext

4шт.

35

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

2шт.

36

87656273

GUARD

1шт.

37

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

39

9706690

NUT,M8 x 1.25, Cl 8

3шт.

40

84801647

HEX SOC SCREW,M12 x 45mm, Cl 8.8

3шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

42

84801355

PLATE

L= 390 MM

1шт.

43

442203

WASHER,41mm ID x 50mm OD x 0.91mm Thk

2шт.

44

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

45

412250

NUT,M8 x 1.25, Cl 8

2шт.

Выбрано товаров: 45
