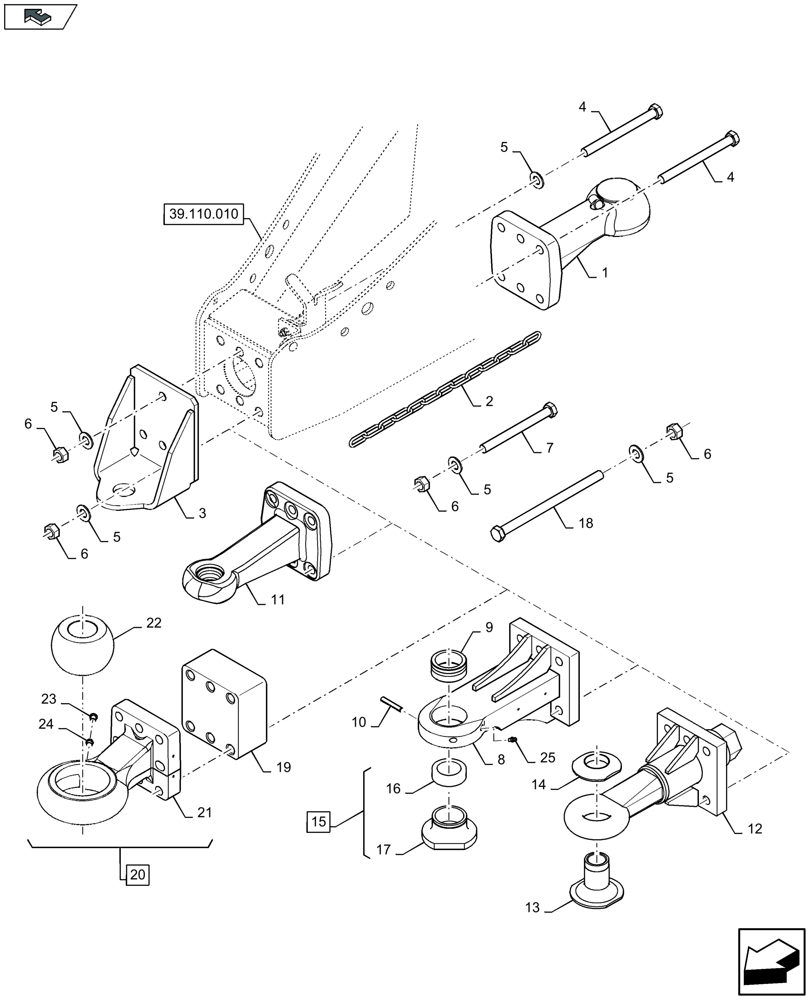

Запчасти Case IH LB424S (39.110.050) - HITCH (39) - FRAMES AND BALLASTING

1

87580270

HITCH

1шт.

2

84041686

CHAIN

1шт.

3

84324117

HITCH

1шт.

4

84435244

BOLT,Hex, M16 x 180mm, Cl 8.8

4шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

11шт.

6

100020

NUT,M16 x 2.0, Cl 8

10шт.

7

86508584

BOLT,Hex, M16 x 170mm, Cl 8.8

6шт.

8

87559152

TOW HOOK

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

8

47983960

TOW HOOK

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

9

84790051

BUSHING

1шт.

10

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

11

87580271

HITCH

1шт.

12

87588695

TOW HOOK

1шт.

13

9839053

PIN,98mm OD x 76.5mm L

1шт.

14

9839054

NUT

1шт.

15

84229178

KIT

D= 31, Incl 16, 17

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

15

47964859

KIT

D= 31, Incl 16, 17

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

15

84110275

DIA KIT, HARVESTER

D= 40, Incl 16, 17

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

15

47964860

KIT

D= 40, Incl 16, 17

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

16

84229182

BUSHING,31mm ID x 56mm OD x 24mm L

D= 31

1шт.

16

84442665

BUSHING,42mm ID x 56mm OD x 24mm L

D= 40

1шт.

16

84229183

BUSHING

D= 39

1шт.

16

84442666

DRIVE BUSHING

D= 33

1шт.

17

84442663

HINGE,52.3mm ID x 90mm OD x 33mm L

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

17

48002102

FLEXIBLE LINK

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

18

86622969

BOLT,Hex, M16 x 250mm, Cl 8.8

, Start Serial: D161

6шт.

19

47782093

MOUNTING PLATE

, Start Serial: D161

1шт.

20

47779588

HITCH

Incl 21 - 24, Start Serial: D161

1шт.

21

NSS

NOT SOLD SEPARAT

Hitch Incl in 20, Start Serial: D161

1шт.

22

47779591

DIA KIT, HARVESTER

, Start Serial: D161

1шт.

23

47779600

COVER

, Start Serial: D161

1шт.

24

47779625

FITTING

, Start Serial: D161

1шт.

25

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.
