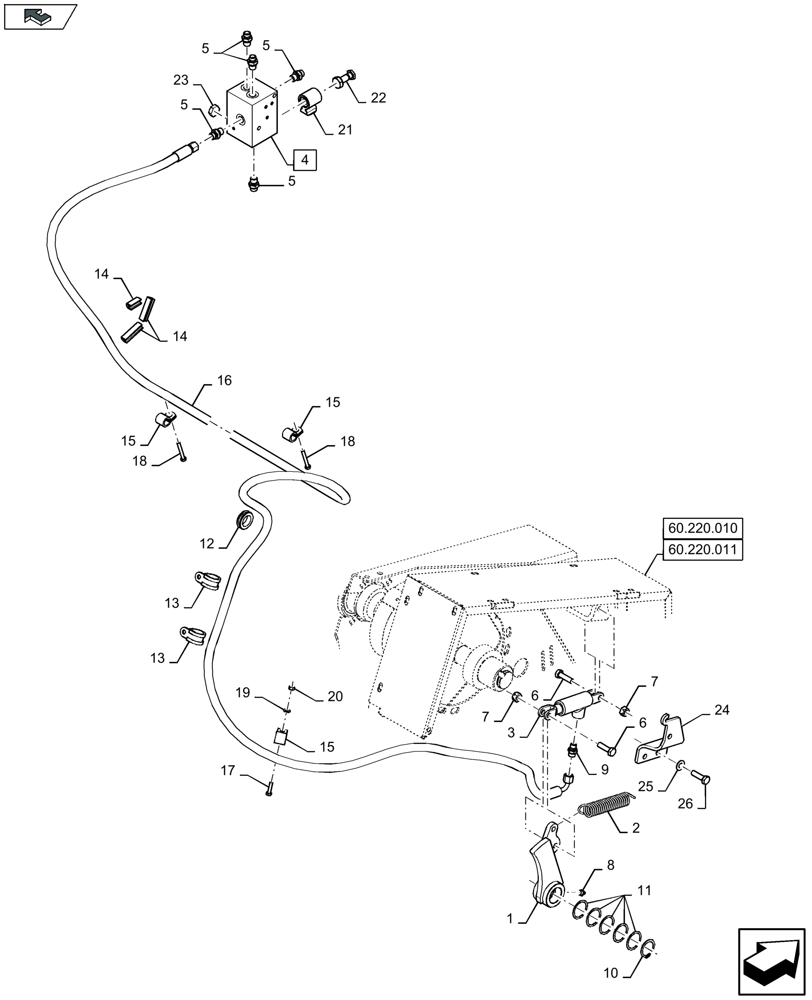

Запчасти Case IH LB424R XL (35.860.010) - PICK-UP STOP (35) - HYDRAULIC SYSTEMS

1

84220221

STOP

1шт.

2

84806601

SPRING,Extension, 28.399mm OD x 108mm L

1шт.

3

84817400

HYDRAULIC CYLINDER

1шт.

4

84585792

HYDRAULIC MANIFOLD

Incl 21 - 23

1шт.

5

84441294

HYD CONNECTOR

5шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

9838669

LUBE NIPPLE

1шт.

9

9850318

HYD CONNECTOR

1шт.

10

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

11

140119

WASHER,35.2mm ID x 42.5mm OD x 1.22mm Thk

5шт.

12

452802

GROMMET

1шт.

13

418407

CLAMP,24mm ID, 8.5mm Bolt Hole, P Type

2шт.

14

9850033

SEAL

L= 0.15 M

3шт.

15

431351

CLAMP,15mm ID, 8.5mm Bolt Hole, P Type

3шт.

16

84448414

FLEXIBLE HOSE,6.35mm ID x 3700mm L, SAE 100R1

1шт.

17

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

18

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

20

9706755

NUT,M6, Cl 8

1шт.

21

87367794

HYDRAULIC VALVE

1шт.

22

84820532

COIL

1шт.

23

87357756

HYDRAULIC VALVE

1шт.

24

47859583

SUPPORT

, Start Serial: D137

1шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D137

2шт.

26

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

, Start Serial: D137

2шт.
