Запчасти Case IH LB424R XL (33.202.010) - HYDRAULIC BRAKES, SINGLE AXLE (33) - BRAKES & CONTROLS

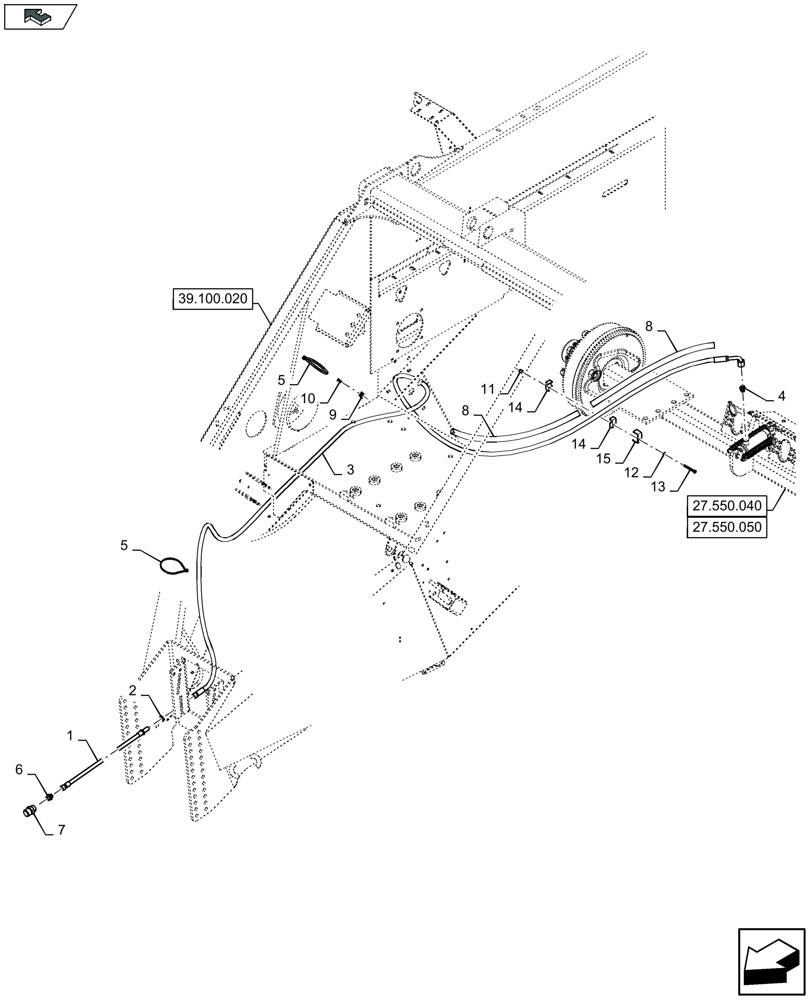

Схема запчастей Case IH LB424R XL - (33.202.010) - HYDRAULIC BRAKES, SINGLE AXLE (33) - BRAKES & CONTROLS
39.100.020
15
12
8
7
5
6
11
14
1
14
5
home
4
9
13
10
2
3
8
27.550.050
27.550.040

Артикул

Название

Примечание

Количество

1

87492507

FLEXIBLE HOSE,7.92mm ID x 2500mm L, SAE 100R1

1шт.

2

87493575

NUT

1шт.

3

84449978

FLEXIBLE HOSE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

3

48067127

HYDRAULIC HOSE

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

4

9837622

HYD CONNECTOR,9/16" JIC x 3/8" BSPP

1шт.

5

84449335

CABLE TIE,346mm L

1шт.

6

395019

HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB

1шт.

7

9839028

HYD CONNECTOR,M18 x 1.5

1шт.

8

9507811

CONDUIT

1шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

10

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

2шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

11

87716662

NUT

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

13

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

14

433007

CLAMP

2шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

15

433100

SUPPORT

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

Выбрано товаров: 25
