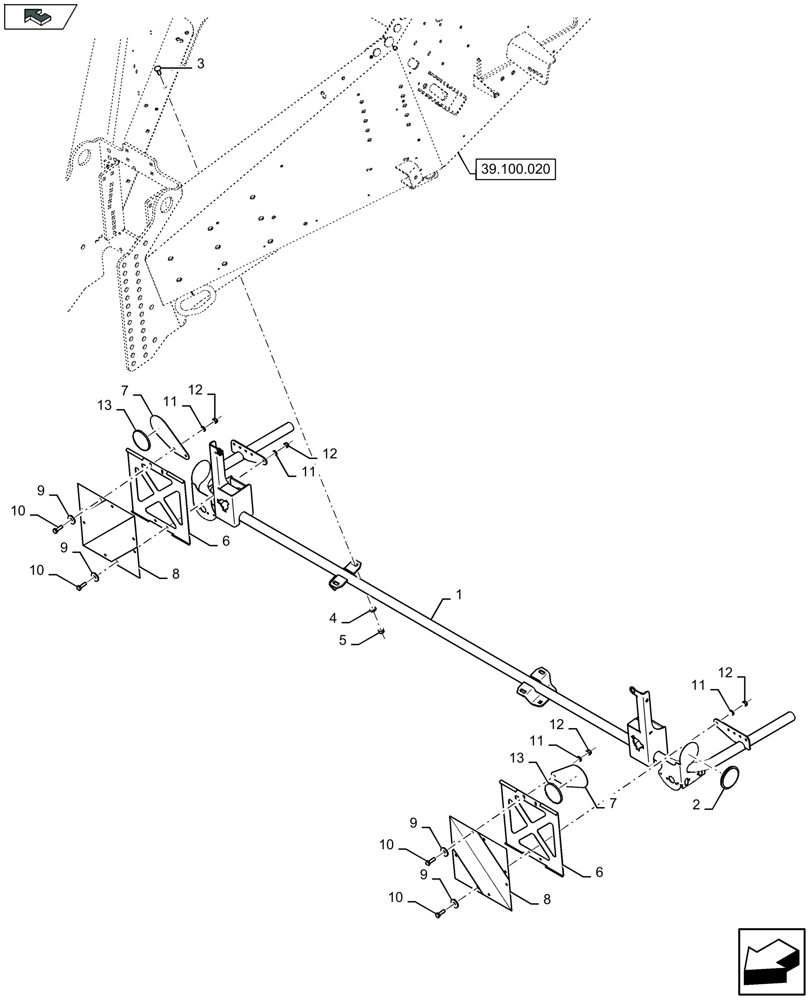

Запчасти Case IH LB424R XL (90.118.081) - LIGHTS ARMS, RAIL - D168 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48043245

CROSSRAIL

1шт.

2

435895

REFLECTOR,80mm OD, Orange

2шт.

3

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

100016

NUT,M10 x 1.5, Cl 8

4шт.

6

48045178

MOUNTING PLATE

2шт.

7

48068940

PLATE

2шт.

8

48064922

PLATE

2шт.

9

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

8шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

12

353308

NUT,M6 x 1.0, Cl 8

8шт.

13

799266

LAMP REFLECTOR

2шт.
