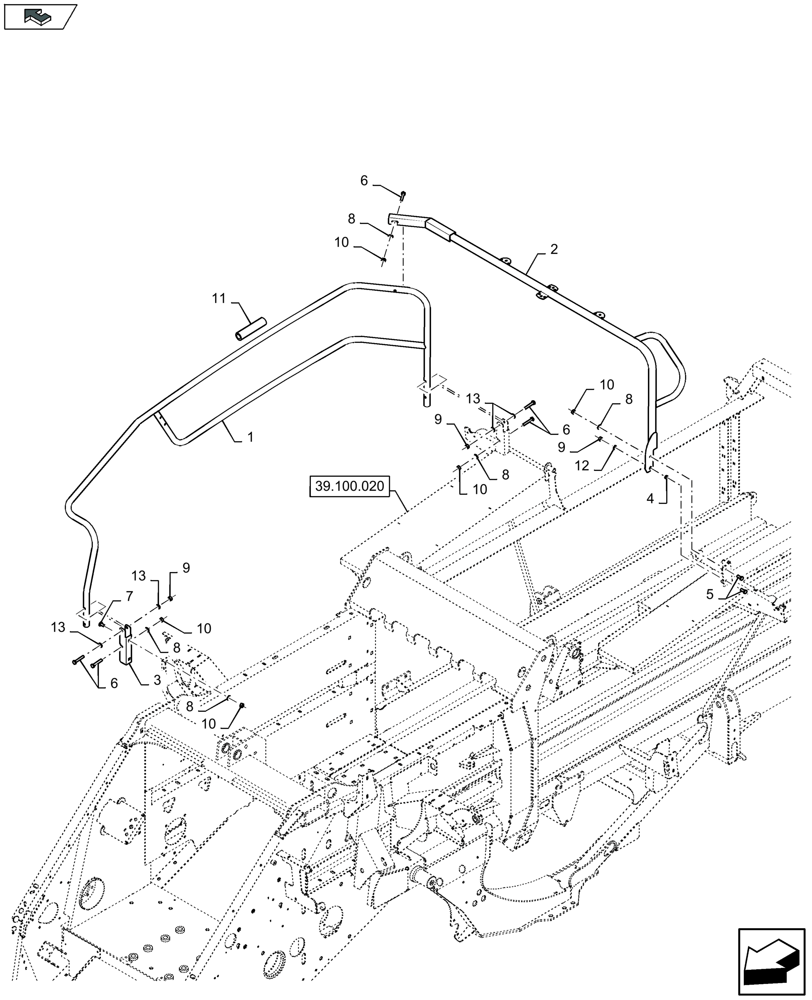

Запчасти Case IH LB424R XL (90.118.035) - RAILINGS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47953795

HANDRAIL

1шт.

2

47953807

HANDRAIL

1шт.

3

47953739

BRACKET

1шт.

4

47705854

BUSHING

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

5шт.

7

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

9

84100524

NUT,M10 x 1.5, Cl 8

3шт.

10

100016

NUT,M10 x 1.5, Cl 8

6шт.

11

48031560

PROTECTION STRIP

2шт.

12

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C169

2шт.

13

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

, Start Serial: D170

4шт.
