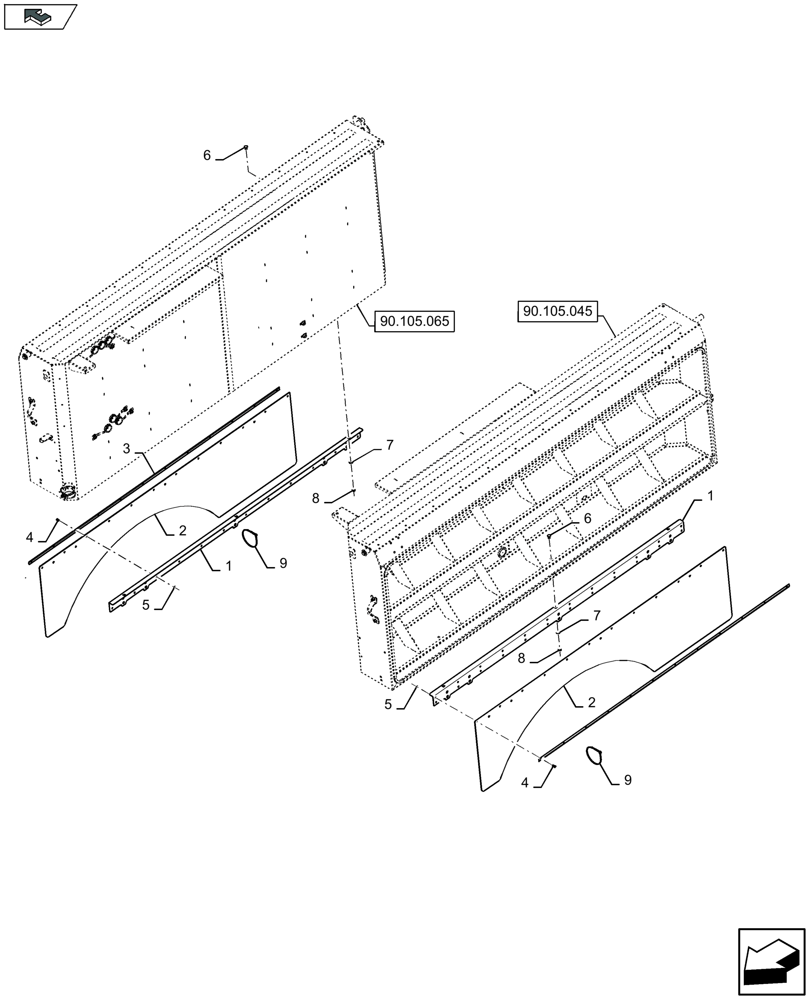

Запчасти Case IH LB424R XL (90.105.220) - LOWER SHIELDS, SINGLE AXLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48033010

PLATE

2шт.

2

48033157

RUBBER STRIP

2шт.

FOR LB324S XL, LB324P XL, LB334S XL, LB334P XL, LB424S XL, LB434S XL ONLY

1шт.

2

48033232

RUBBER STRIP

2шт.

FOR LB324R XL, LB334R XL, LB424R XL, LB434R XL ONLY

1шт.

3

48033008

MOUNTING PLATE

2шт.

4

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

24шт.

5

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

24шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

8

9706690

NUT,M8 x 1.25, Cl 8

6шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

12шт.
