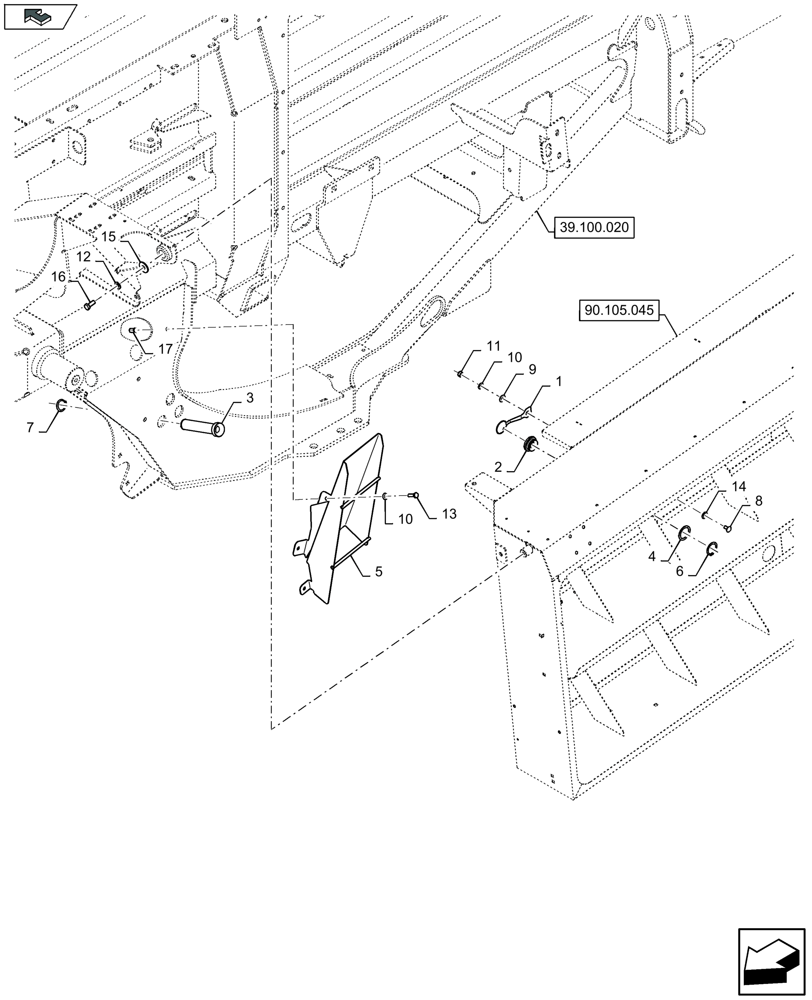

Запчасти Case IH LB424R XL (90.105.055) - TWINE BOXES LH SUPPORT - C174 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84421934

LEAF SPRING

6шт.

2

84275921

GUIDE

6шт.

3

47953691

GUIDE

3шт.

4

84444540

WASHER,35mm ID x 45mm OD x 2mm Thk

6шт.

5

47972542

SHIELD

1шт.

6

370004

SNAP RING,M35 x 1.5mm Thk, External

6шт.

7

370003

SNAP RING,M30, External

3шт.

8

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

9

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

11

9706690

NUT,M8 x 1.25, Cl 8

6шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

15

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

17

47625837

NUT

3шт.
