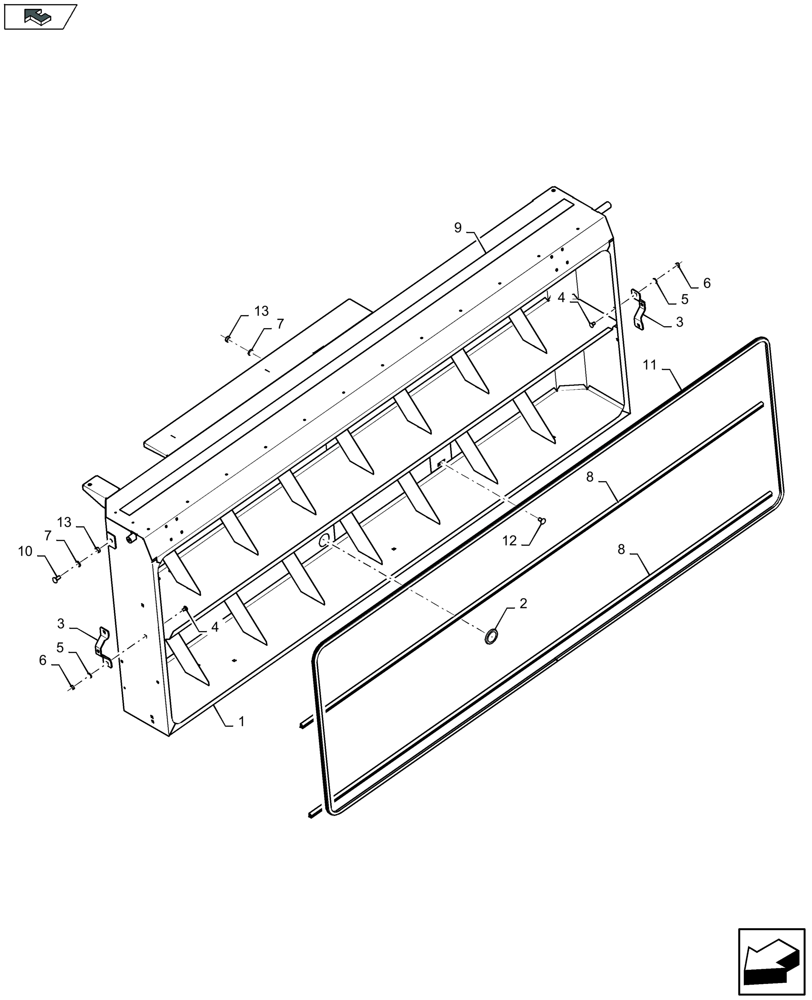

Запчасти Case IH LB424R XL (90.105.045) - TWINE BOXES LH - C174 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47675327

TWINE BOX

1шт.

2

47528354

BUTTON PLUG

1шт.

3

84582390

PLATE

2шт.

4

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

9706690

NUT,M8 x 1.25, Cl 8

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

8

84607251

RUBBER WEATHERSTRIP

1шт.

9

401502

ANTI-SKID STRIP

1шт.

10

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

11

84212895

SEAL

1шт.

12

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

13

100016

NUT,M10 x 1.5, Cl 8

3шт.
