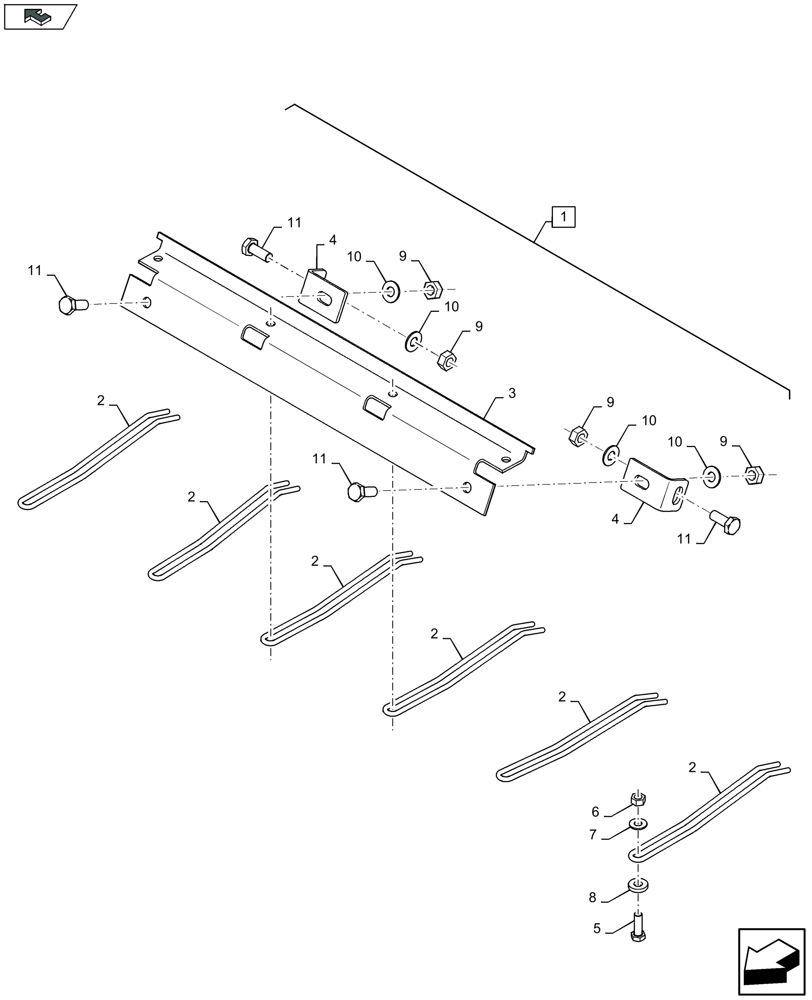

Запчасти Case IH LB424R XL (88.068.013) - DIA KIT: NEEDLE CLEANING KIT (88) - ACCESSORIES

1

47985369

DIA KIT, HARVESTER

Incl 2 - 11

1шт.

2

84801637

SPRING

6шт.

3

47985359

SUPPORT

1шт.

4

47985365

SUPPORT

2шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

6

9706690

NUT,M8 x 1.25, Cl 8

6шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

8

350240

WASHER,9mm ID x 20mm OD x 4mm Thk

6шт.

9

100016

NUT,M10 x 1.5, Cl 8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.
