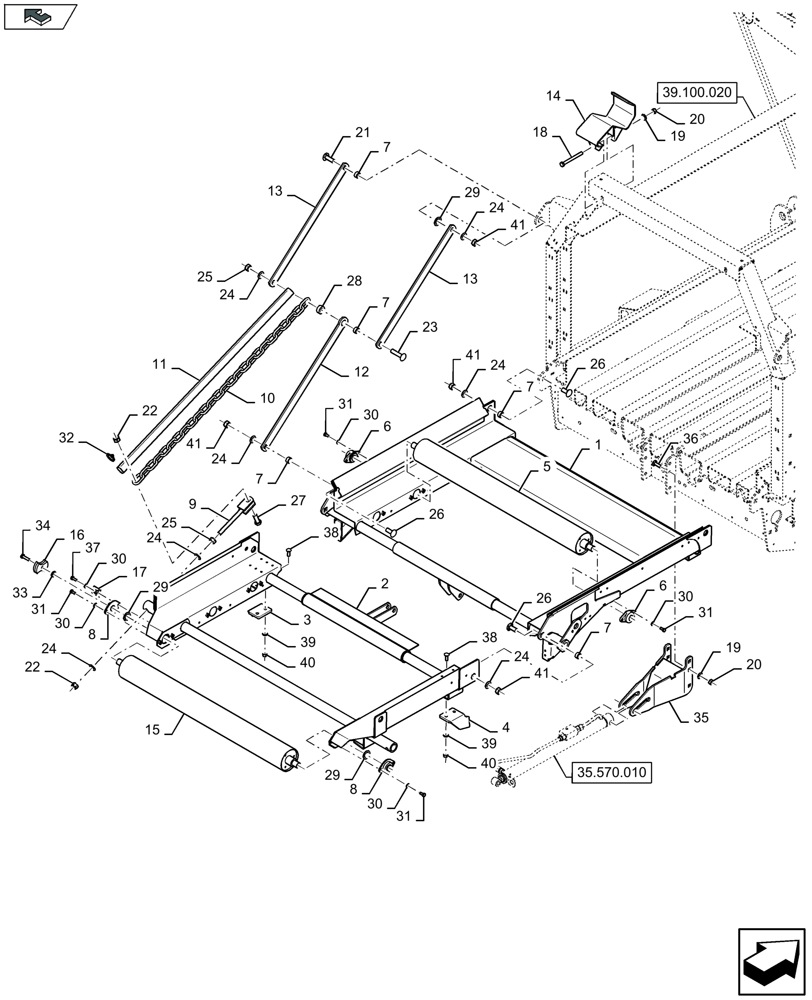

Запчасти Case IH LB424R XL (70.250.045) - ROLLER BALE CHUTE (70) - EJECTION

1

47591735

FRAME

1шт.

2

87723507

FRAME

1шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

2

48061592

, Start Serial: D175

FRAME

1шт.

WITH BALE WEIGHING SYSTEM

1шт.

3

47944376

STOP

1шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

4

47944378

STOP

1шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

5

84032863

ROLLER,108mm OD x 1127mm L

5шт.

6

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

8шт.

7

9837933

SPACER,17mm ID x 25.4mm OD x 12.5mm L

10шт.

8

9837806

FLANGED BEARING,25mm ID

4шт.

9

9512549

ROD

2шт.

10

84074138

CHAIN,1190mm L

2шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

10

84074170

CHAIN,1505mm L

2шт.

WITH BALE WEIGHING SYSTEM

1шт.

11

80292267

BAND

2шт.

12

84074054

SUPPORT

2шт.

13

84074051

SUPPORT

4шт.

14

47538280

SUPPORT

2шт.

15

84801337

ROLLER,108mm OD x 1127mm L

1шт.

16

84583160

PLATE

1шт.

17

84164081

SUPPORT

1шт.

18

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

20

9706685

NUT,M12 x 1.75, Cl 8

8шт.

21

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

22

86000441

NUT,M16 x 2.0, Cl 8

4шт.

23

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

2шт.

24

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

14шт.

25

100020

NUT,M16 x 2.0, Cl 8

4шт.

26

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

, Serial Range: -C174

6шт.

26

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

, Start Serial: D175

6шт.

27

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

28

48017172

BUSHING

2шт.

29

140104

WASHER,26mm ID x 45mm OD x 3mm Thk

4шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

23шт.

32

84449335

CABLE TIE,346mm L

4шт.

33

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

1шт.

34

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

35

47962336

MOUNTING PLATE

1шт.

36

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

6шт.

37

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

38

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

40

100016

NUT,M10 x 1.5, Cl 8

4шт.

WITHOUT BALE WEIGHING SYSTEM

1шт.

41

100020

NUT,M16 x 2.0, Cl 8

, Serial Range: -C174

8шт.

41

86000441

NUT,M16 x 2.0, Cl 8

, Start Serial: D175

8шт.
