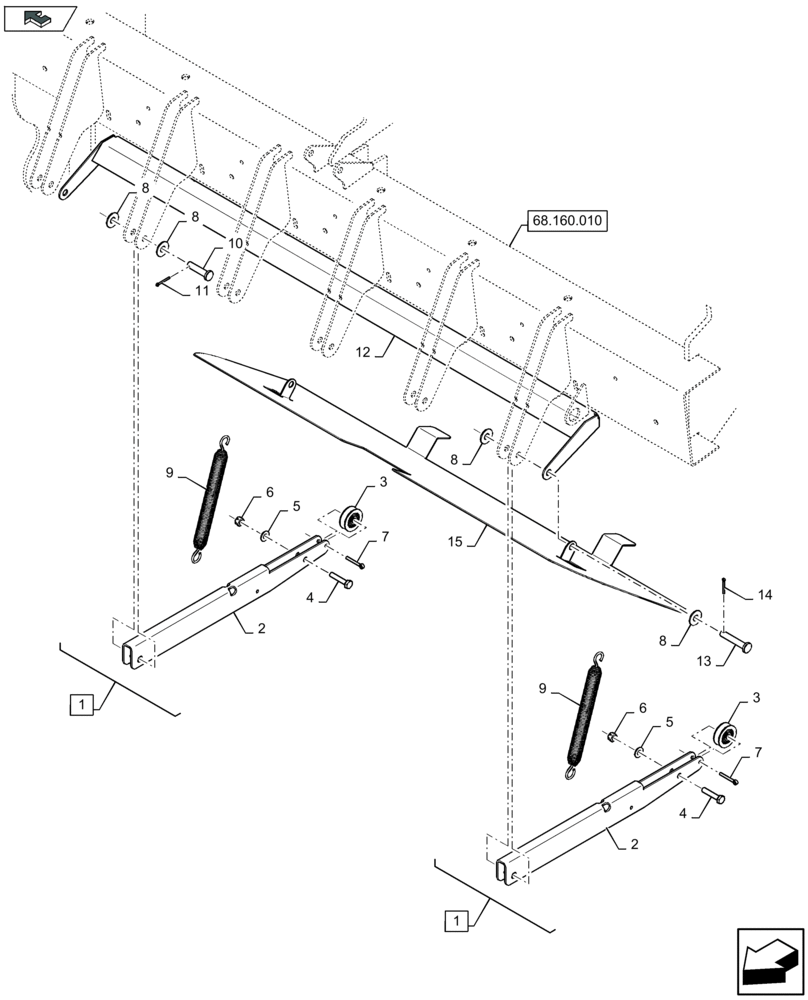

Запчасти Case IH LB424R XL (68.150.060) - TWINE TENSIONER, ARM (68) - TYING/WRAPPING

1

84295037

ARM

Incl 2 - 7

6шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

1

84295037

ARM

Incl 2 - 7

4шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

1

84295037

ARM

Incl 2 - 7

4шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

2

84295038

ARM

1шт.

3

87521132

ROPE GUIDE ROLLER,31.5mm OD x 12mm L

1шт.

MAINTENANCE PART

1шт.

4

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

6

353308

NUT,M6 x 1.0, Cl 8

1шт.

7

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

9

84465174

TENSION SPRING

1шт.

MAINTENANCE PART

1шт.

10

412414

CLEVIS PIN,M8 x 35

1шт.

11

9512667

COTTER PIN,M2 x 20mm OAL

1шт.

12

84329015

ARM

, Serial Range: -C130

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

12

84329016

ARM

, Serial Range: -C130

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

13

412414

CLEVIS PIN,M8 x 35

, Serial Range: -C098

1шт.

13

86639106

CLEVIS PIN,8mm OD x 40mm L

, Serial Range: -F099144

1шт.

13

47859754

CLEVIS PIN

, Serial Range: -F145145

1шт.

14

9512667

COTTER PIN,M2 x 20mm OAL

, Serial Range: -C098

1шт.

14

9837600

COTTER PIN

, Serial Range: -F099145

1шт.

15

47626616

SHIELD

, Serial Range: -F099145

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

15

47626607

SHIELD

, Serial Range: -F099145

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.
