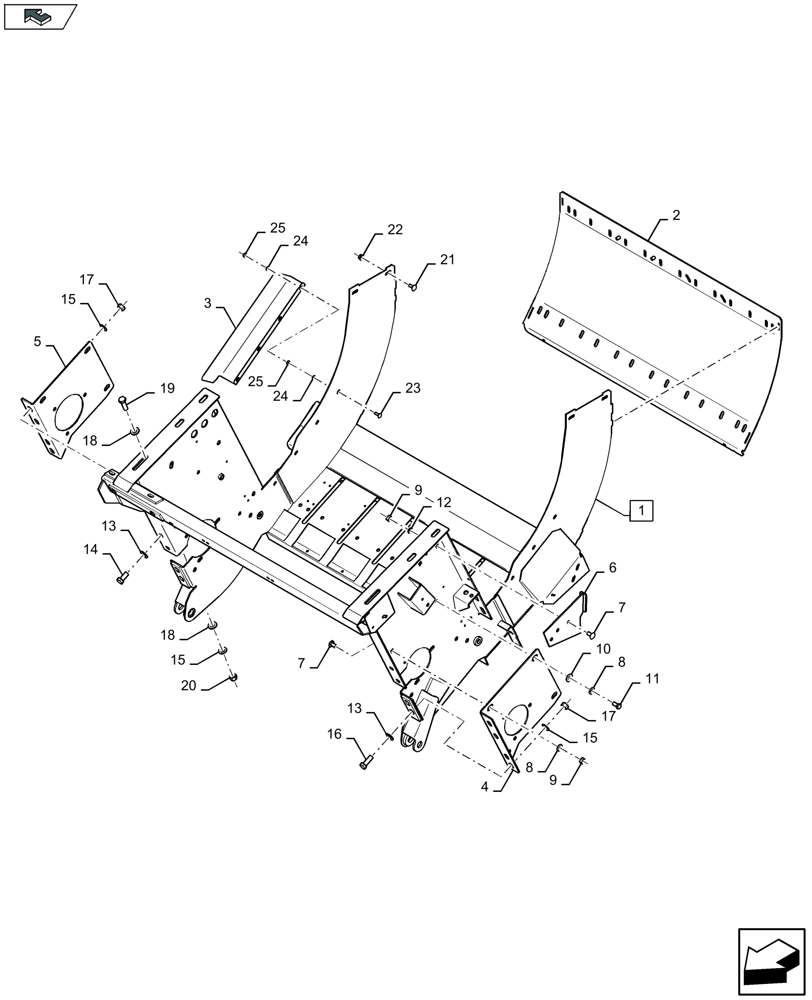

Запчасти Case IH LB424R XL (60.280.045) - FEED CHAMBER, FRAME - C174 (60) - PRODUCT FEEDING

1

47960327

CHANNEL

Incl 2

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

84269032

SHIELD

1шт.

4

47824940

REINFORCEMENT

1шт.

5

47824921

REINFORCEMENT

1шт.

6

47375039

PLATE

1шт.

7

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

9

9706685

NUT,M12 x 1.75, Cl 8

4шт.

10

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

4шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

13

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

8шт.

14

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

15

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

16

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

4шт.

17

100020

NUT,M16 x 2.0, Cl 8

8шт.

18

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

16шт.

19

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

8шт.

20

86000441

NUT,M16 x 2.0, Cl 8

8шт.

21

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

22

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

23

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

25

9706690

NUT,M8 x 1.25, Cl 8

8шт.
