Запчасти Case IH LB424R XL (60.220.101) - FEED ROLLER - D085 (60) - PRODUCT FEEDING

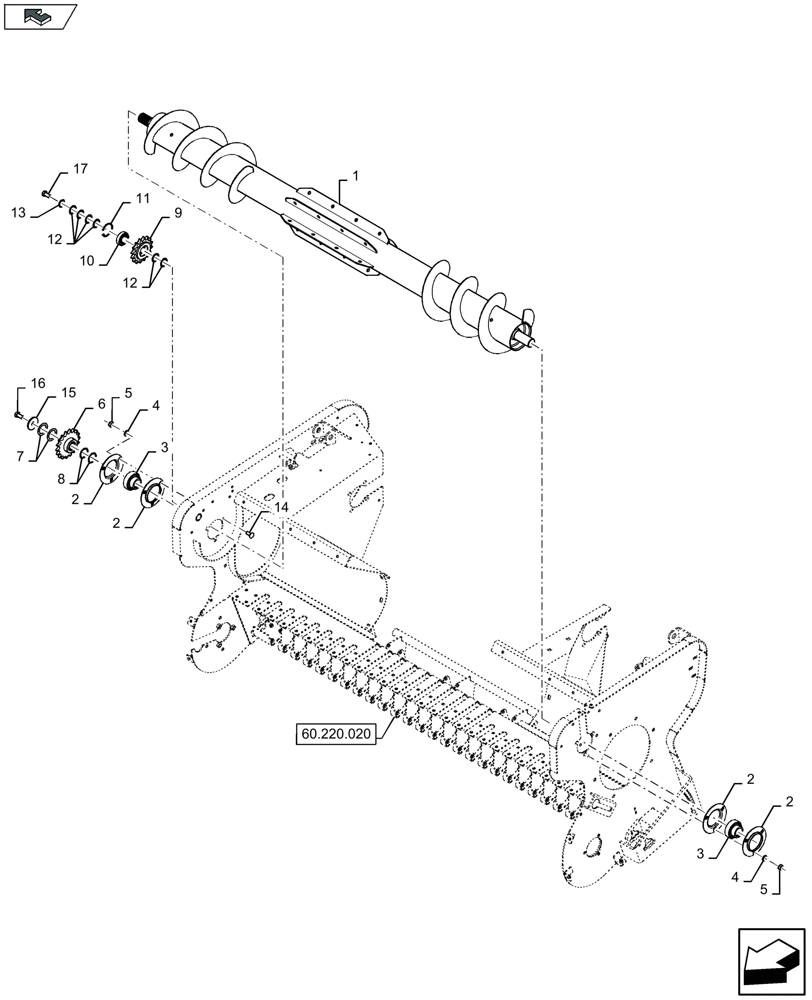

Схема запчастей Case IH LB424R XL - (60.220.101) - FEED ROLLER - D085 (60) - PRODUCT FEEDING
60.220.020
17
12
4
11
1
3
2
14
8
2
3
9
6
10
15
5
home
7
13
5
2
2
16
4
12

Артикул

Название

Примечание

Количество

1

47501832

FEED ROLLER

, Serial Range: -C144

1шт.

FOR LB324R, LB334R ONLY

1шт.

1

47905201

FEED ROLLER

, Start Serial: D145

1шт.

FOR LB324R, LB334R ONLY

1шт.

1

47581248

FEED ROLLER

, Serial Range: -C144

1шт.

FOR LB324R, LB334R ONLY

1шт.

FOR EXTENDED AUGER ONLY

1шт.

1

47906539

FEED ROLLER

, Start Serial: D145

1шт.

FOR LB324R, LB334R ONLY

1шт.

FOR EXTENDED AUGER ONLY

1шт.

1

84568888

FEED ROLLER

, Serial Range: -C144

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

1

47905517

FEED ROLLER

, Start Serial: D145

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

1

47600353

FEED ROLLER

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

FOR EXTENDED AUGER ONLY

1шт.

2

36403

BEARING HOUSING

4шт.

3

9837842

BEARING,35mm ID x 72mm OD x 19mm W

2шт.

MAINTENANCE PART

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

5

100016

NUT,M10 x 1.5, Cl 8

6шт.

6

84568884

SPROCKET

1шт.

7

442293

WASHER,36mm ID x 50mm OD x 1.5mm Thk

2шт.

8

84429871

WASHER

2шт.

9

84568878

SPROCKET

, Serial Range: -C136

1шт.

9

47635046

SPROCKET

, Start Serial: D137

1шт.

10

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

, Serial Range: -C136

1шт.

10

47462369

BALL BEARING

, Start Serial: D137

1шт.

11

370011

CIRCLIP,M52 x 2mm Thk, Internal

1шт.

12

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

6шт.

13

370002

CIRCLIP,M25, External

, Serial Range: -C136

1шт.

13

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

, Start Serial: D137

1шт.

14

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

3шт.

15

9801096

WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk

1шт.

16

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

17

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

, Start Serial: D137

1шт.

Выбрано товаров: 37
