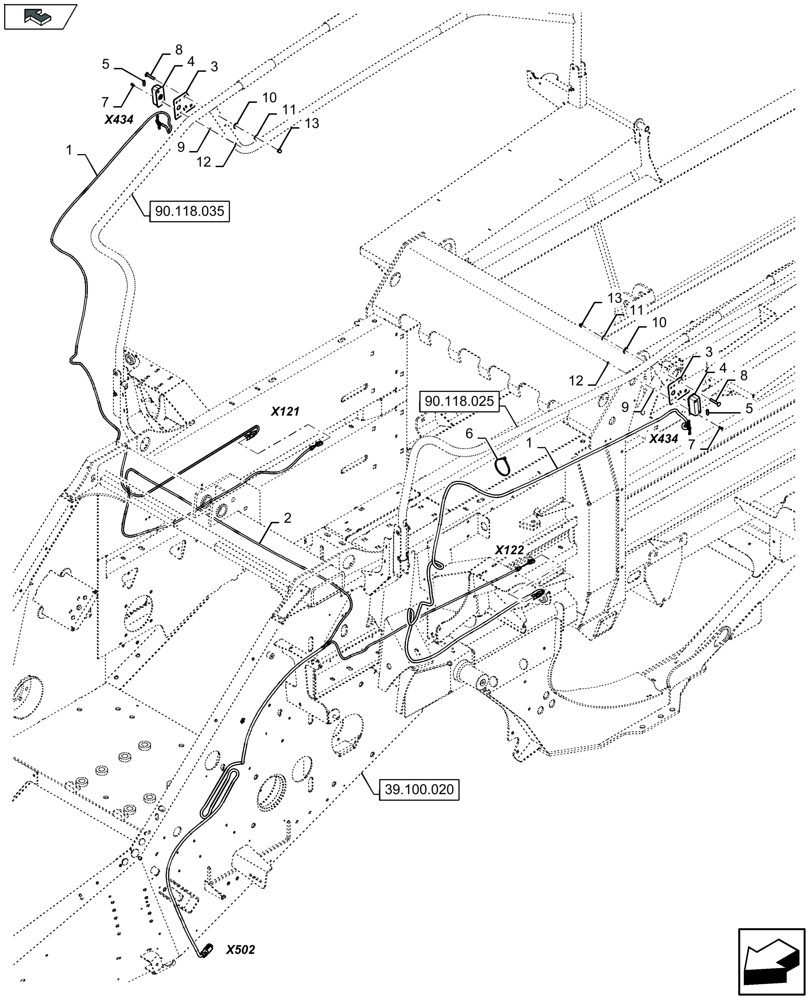

Запчасти Case IH LB424R XL (55.511.060) - SIDE LIGHTS (55) - ELECTRICAL SYSTEMS

1

48017456

WIRE HARNESS

2шт.

2

84554130

WIRE HARNESS

1шт.

3

48016166

PLATE

, Serial Range: -C174

2шт.

4

47381350

POSITION LAMP

2шт.

5

353078

BULB,T8/4, 12V, 4W

2шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

33шт.

7

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

8

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

, Serial Range: -C174

4шт.

9

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

10

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

, Serial Range: -C174

4шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Serial Range: -C174

4шт.

12

385681

NUT,M4 x 0.7, Cl 8

4шт.

13

87301462

CROWN NUT,Crown, M8, Cl6

, Serial Range: -C174

4шт.
