Запчасти Case IH LB424R XL (55.418.075) - ELECTRICITY, BALE WEIGHING SYSTEM (55) - ELECTRICAL SYSTEMS

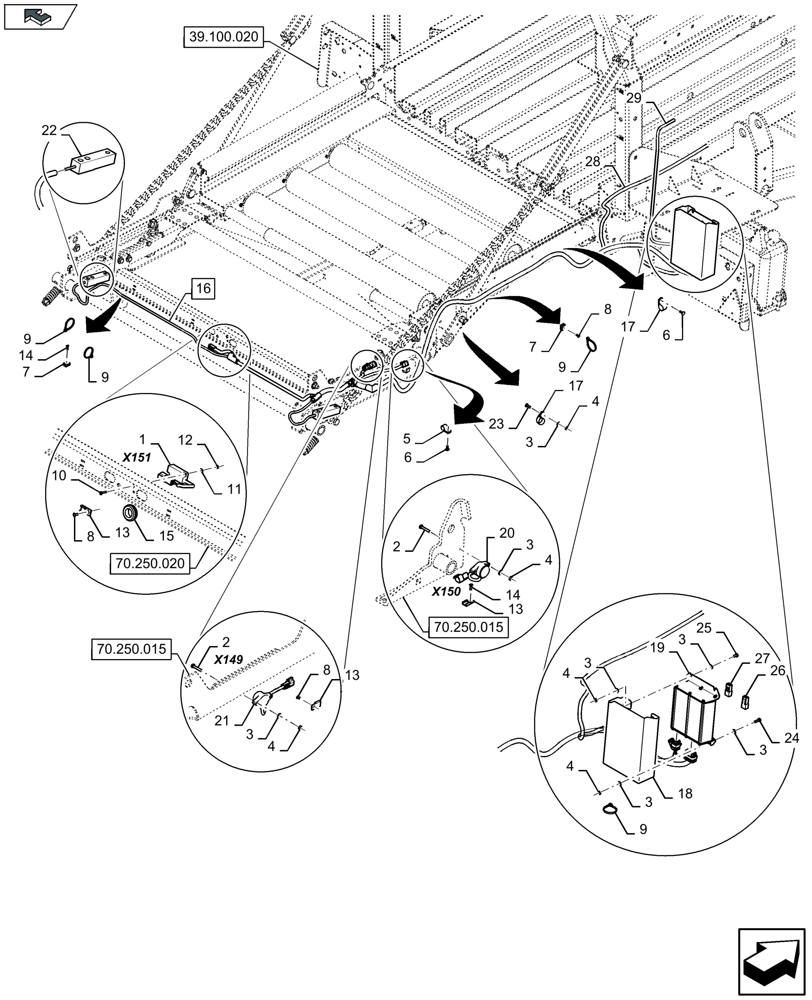

Схема запчастей Case IH LB424R XL - (55.418.075) - ELECTRICITY, BALE WEIGHING SYSTEM (55) - ELECTRICAL SYSTEMS
70.250.020
25
16
10
7
4
2
8
3
18
8
23
1
2
3
9
21
3
6
9
3
15
27
9
3
26
17
11
4
5
8
14
20
3
13
19
13
17
4
22
24
4
28
13
4
6
3
29
14
12
7
9
70.250.015
70.250.015
39.100.020

Артикул

Название

Примечание

Количество

1

84159863

SENSOR

B151 - Sensor Accelero (Bale Weight)

1шт.

2

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

15шт.

4

9706755

NUT,M6, Cl 8

11шт.

5

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

, Serial Range: -C166

1шт.

5

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: D167

1шт.

6

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

11шт.

7

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

9

86566989

CABLE TIE,208mm L

1шт.

10

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

2шт.

11

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

12

100012

NUT,M4 x 0.7, Cl 8

2шт.

13

84058832

CLIP

3шт.

14

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

3шт.

15

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1шт.

16

48014120

WIRE HARNESS

Incl 22

1шт.

17

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

11шт.

18

84480655

PLATE

1шт.

19

84134704

CONTROLLER

1шт.

20

87026294

SENSOR

B149 - Sensor Inclino on Tripping Frame (Bale Weight)

1шт.

21

87026294

SENSOR

B150 - Sensor Inclino on Fixed Frame (Bale Weight)

1шт.

22

84164654

SENSOR

B001/B002 - Sensor Side Load Cell (Bale Weight)

2шт.

23

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

1шт.

24

300506

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

25

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

26

84247024

WIRE CONNECTOR

, Serial Range: -C174

1шт.

27

87380352

ELEC CONNECTOR

1шт.

28

47966336

WIRE HARNESS

1шт.

29

84460028

WIRE HARNESS

, Serial Range: -C174

1шт.

Выбрано товаров: 30
