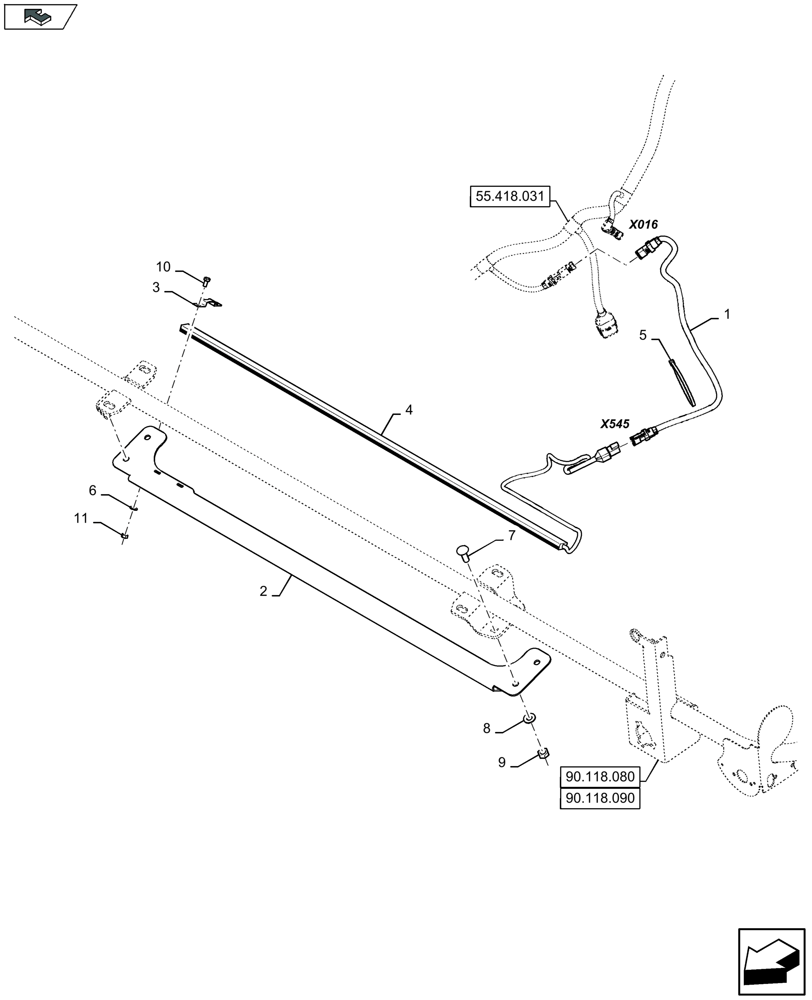

Запчасти Case IH LB424R XL (55.404.055) - PICK-UP LIGHT, LED (55) - ELECTRICAL SYSTEMS

1

47966400

WIRE HARNESS

, Serial Range: -C174

1шт.

2

48003577

MOUNTING PLATE

, Serial Range: -C174

1шт.

2

48087582

, Start Serial: D175

MOUNTING PLATE

1шт.

3

47533109

SUPPORT

2шт.

4

47608249

STRIP

1шт.

5

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

7

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

100016

NUT,M10 x 1.5, Cl 8

4шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

11

9706755

NUT,M6, Cl 8

4шт.
