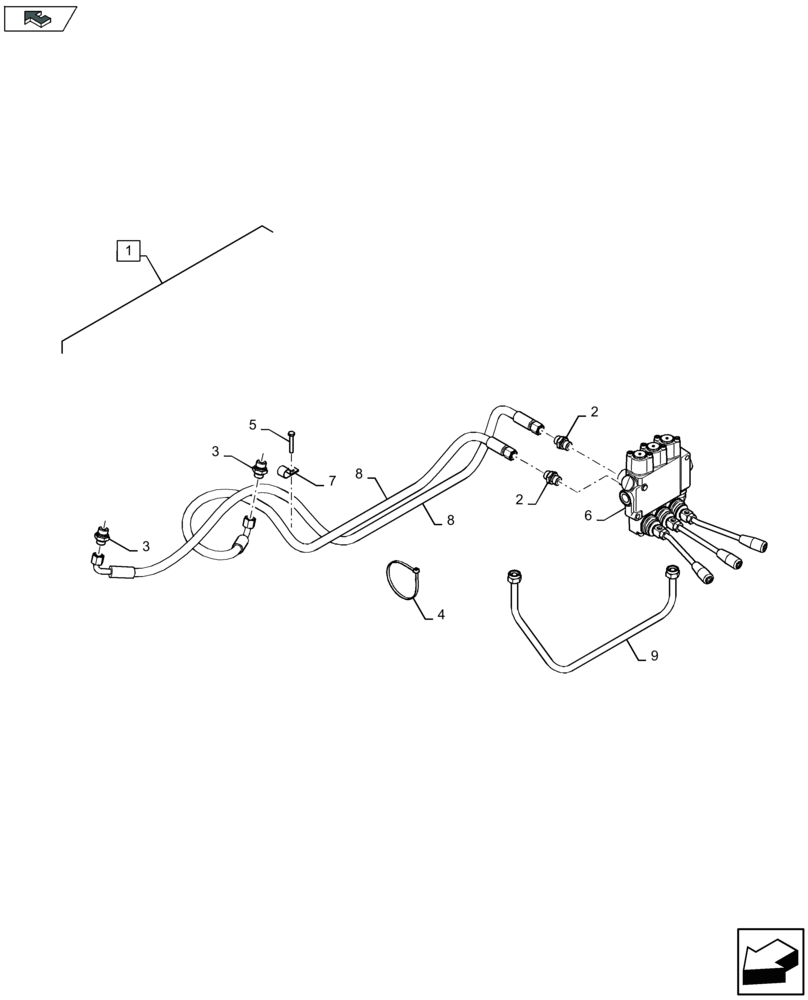

Запчасти Case IH LB424R (88.070.008[02]) - DIA KIT : PARTIAL BALE EJECT - F085136 (88) - ACCESSORIES

1

47510920

DIA KIT, HARVESTER

Incl 2 - 9

1шт.

2

9813512

HYD CONNECTOR

2шт.

3

395019

HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB

2шт.

4

86566990

CABLE TIE,292mm OAL x 4.8mm W

4шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

6

84568220

VALVE

1шт.

7

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

8

47371204

HYDRAULIC HOSE,7.92mm ID x 1450mm L, SAE 100R16

2шт.

9

84542395

HYD TUBE

1шт.

87479616

DECAL

1шт.
