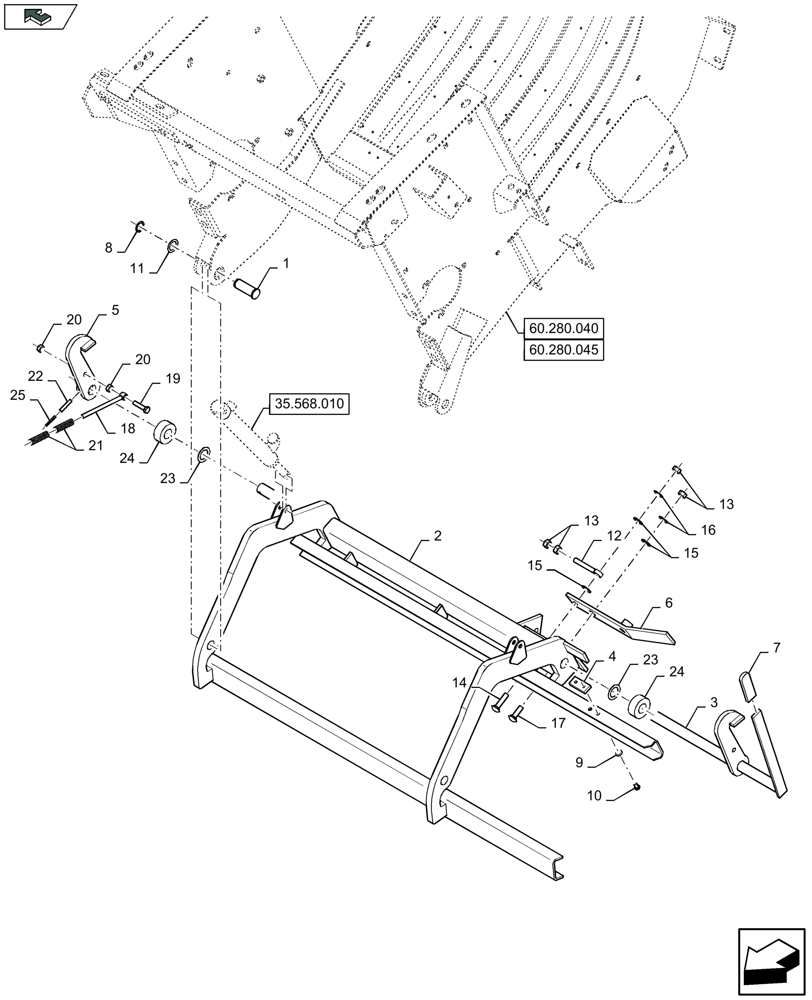

Запчасти Case IH LB424R (60.280.060) - FEEDER CHAMBER, SUSPENSION FRAME (60) - PRODUCT FEEDING

1

84335471

PIN,25mm OD x 70mm L

2шт.

2

47359452

FRAME

, Serial Range: -C129

1шт.

FOR LB324R, LB334R ONLY

1шт.

2

47798255

FRAME

, Start Serial: D130

1шт.

FOR LB324R, LB334R ONLY

1шт.

2

47359467

FRAME

, Serial Range: -C129

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

2

47798259

FRAME

, Start Serial: D130

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

3

84345946

SHAFT

1шт.

FOR LB324R, LB334R ONLY

1шт.

3

84345949

SHAFT

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

4

84039445

STOP

1шт.

5

84042703

HOOK

1шт.

6

84042262

COVER PLATE

1шт.

7

9839186

KNOB

1шт.

8

370002

CIRCLIP,M25, External

2шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Serial Range: -C129

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D130

2шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

, Serial Range: -C129

2шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Start Serial: D130

2шт.

11

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

2шт.

12

330413

BANJO BOLT

1шт.

13

9706685

NUT,M12 x 1.75, Cl 8

4шт.

14

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

1шт.

15

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

3шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

17

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

18

84021756

BANJO BOLT

1шт.

19

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

2шт.

21

355988

SPRING

2шт.

22

14607370

ROLL PIN,M8 x 45, Slotted

1шт.

23

26558

WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk

7шт.

24

84361665

SPACER,28.5mm ID x 60mm OD x 24mm L

2шт.

25

86977792

SLOTTED PIN,5mm OD x 40mm L, Slotted

1шт.
