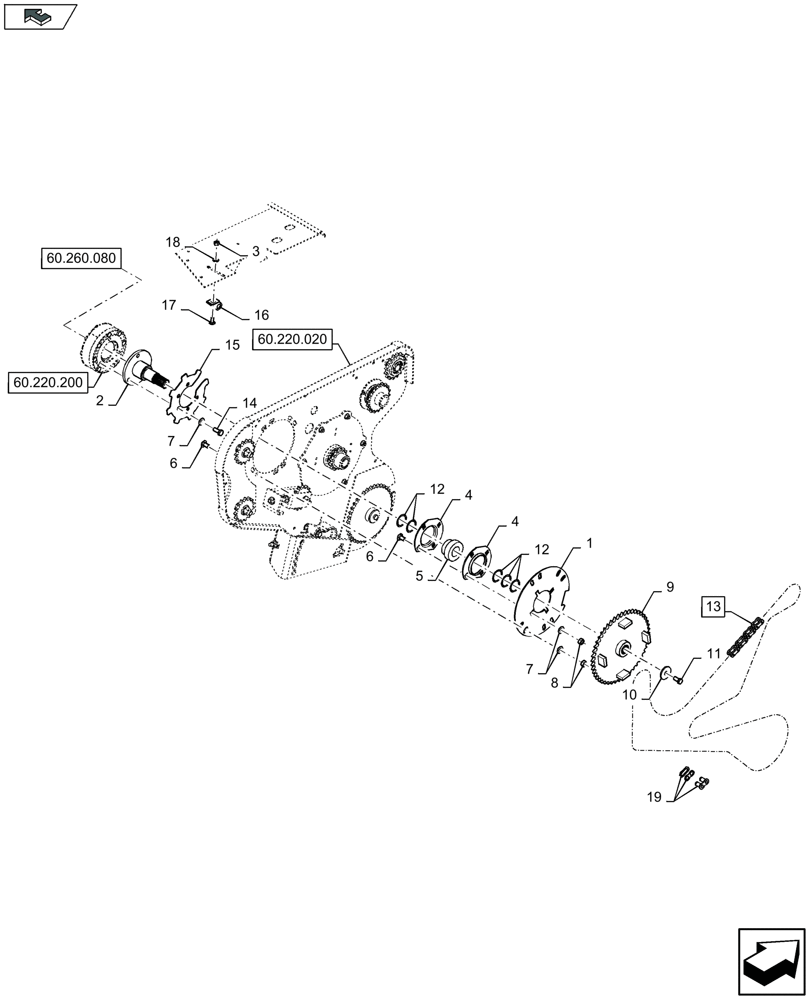

Запчасти Case IH LB424R (60.220.160) - PICK-UP, MAIN TRANSMISSION, RH (60) - PRODUCT FEEDING

1

84391381

PLATE

1шт.

2

84350246

SHAFT

, Serial Range: -C162

1шт.

2

48052349

SHAFT

, Start Serial: D163

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

1шт.

4

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

5

552945

BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm

1шт.

MAINTENANCE PART

1шт.

6

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

12шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

15шт.

8

9706685

NUT,M12 x 1.75, Cl 8

12шт.

9

84272524

SPROCKET

1шт.

10

9801096

WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk

1шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

12

442203

WASHER,41mm ID x 50mm OD x 0.91mm Thk

5шт.

13

84274373

CHAIN

Incl 19, Serial Range: -C098

1шт.

MAINTENANCE PART

1шт.

13

47662980

CHAIN

Incl 19, Serial Range: -F099130

1шт.

MAINTENANCE PART

1шт.

13

47794660

CHAIN

Incl 19, Start Serial: D131

1шт.

MAINTENANCE PART

1шт.

14

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

15

84348544

PLATE

1шт.

16

84348545

SUPPORT

, Serial Range: -C149

1шт.

16

47934522

SUPPORT

, Start Serial: D150

1шт.

17

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

19

165590

CONNECTING LINK

, Serial Range: -C130

1шт.

MAINTENANCE PART

1шт.

19

47783767

CONNECTING LINK

, Start Serial: D131

1шт.

MAINTENANCE PART

1шт.
