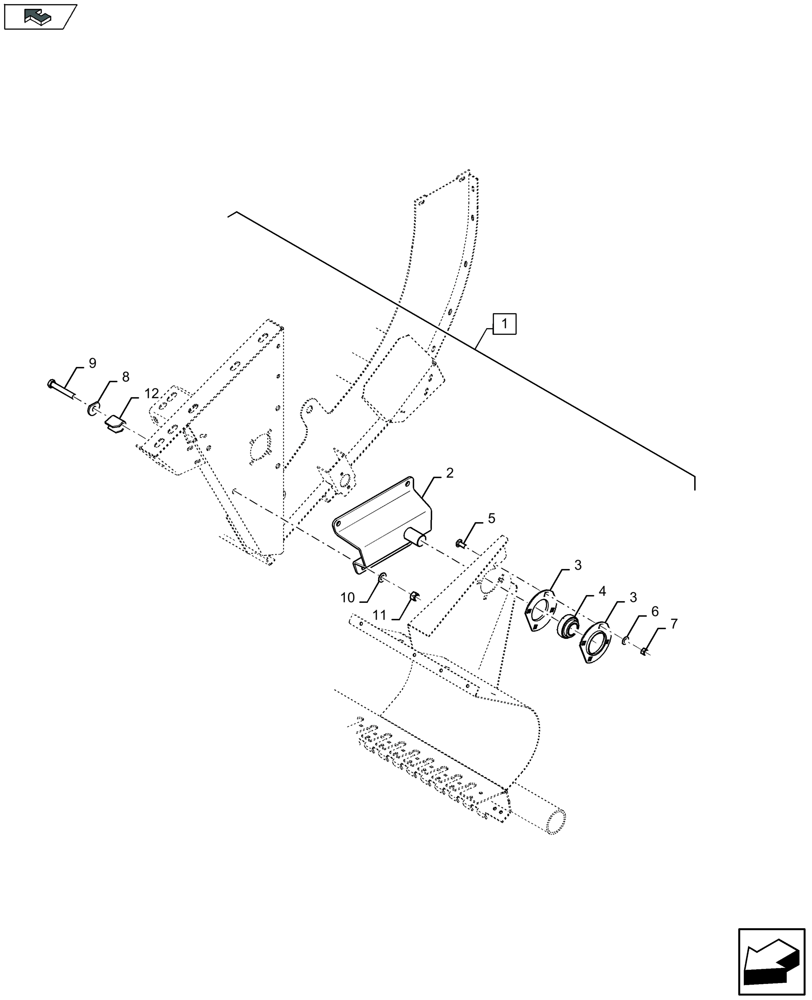

Запчасти Case IH LB334S (88.060.031[03]) - SERVICE KIT: PACKER CRANKSHAFT & DRIVE KIT - C159 (88) - ACCESSORIES

1

48126005

Incl 2 - 12

SERVICE KIT

1шт.

2

47966465

SPINDLE

1шт.

3

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

4

84240146

BEARING,40mm ID x 80mm OD x 21mm W

1шт.

5

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

7

100038

NUT,M12 x 1.75, Cl 8

4шт.

8

333041

WASHER,16.5mm ID x 49mm OD x 6mm Thk

4шт.

9

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

4шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

11

86000441

NUT,M16 x 2.0, Cl 8

4шт.

12

47908047

SUPPORT

4шт.
