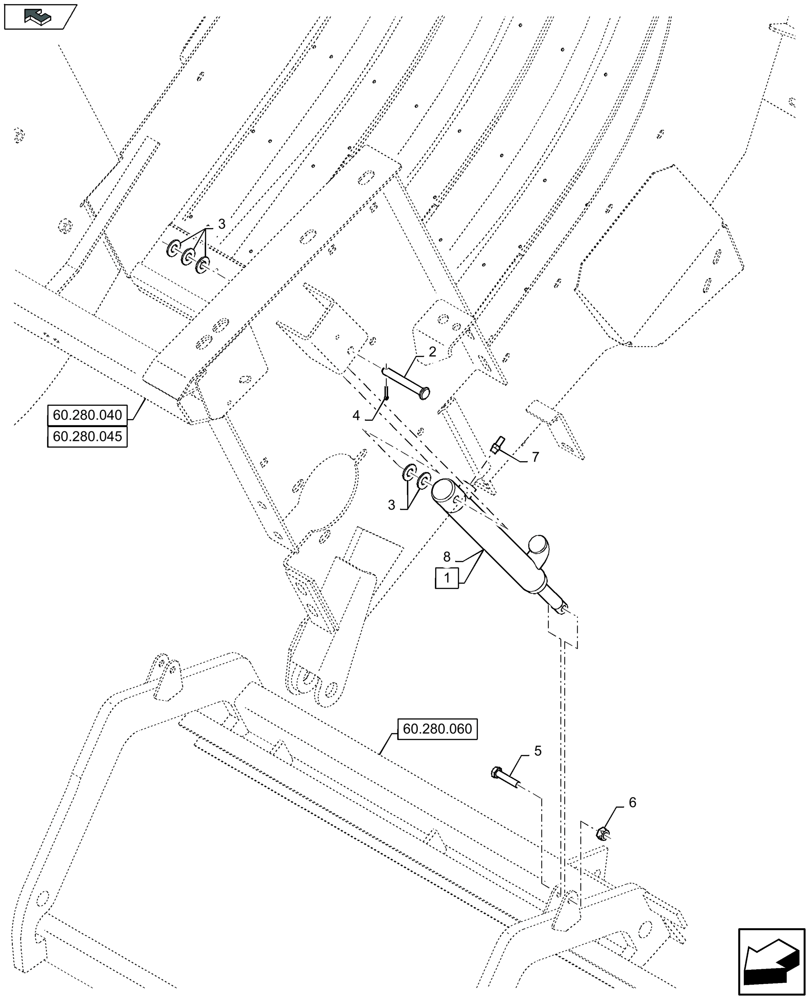

Запчасти Case IH LB334R (35.568.010) - FEED CHAMBER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84807175

HYDRAULIC CYLINDER,Double Acting, 20mm Rod, 235mm Stroke

Incl 8

2шт.

2

87344037

CLEVIS PIN,M12 x 90

2шт.

3

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

10шт.

4

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

5

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

916612

BREATHER

2шт.

8

84026460

SEAL KIT

1шт.
