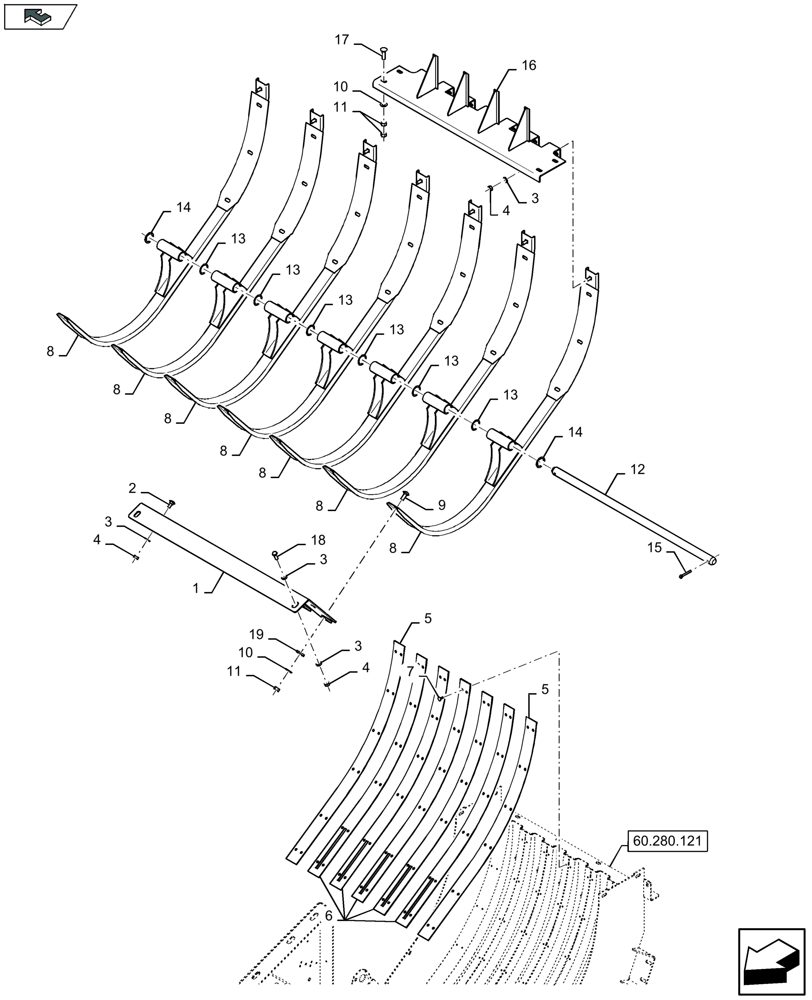

Запчасти Case IH LB334P (60.280.131) - FEED CHAMBER, PLATES - D151 (60) - PRODUCT FEEDING

1

47978212

MOUNTING PLATE

1шт.

2

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

4

100016

NUT,M10 x 1.5, Cl 8

13шт.

5

84427740

PLATE

2шт.

6

84262881

PLATE

5шт.

7

84069248

RIVET,Pop, 4.8mm OD x 20.7mm L

84шт.

8

47978210

GUIDE

7шт.

9

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

7шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

11шт.

11

9706685

NUT,M12 x 1.75, Cl 8

15шт.

12

84038868

ROD

1шт.

13

87039409

SHIM,35mm ID x 45mm OD x 0.5mm Thk

6шт.

14

444211

WASHER,34.8mm ID x 45mm OD x 3mm Thk

2шт.

15

300423

COTTER PIN,M6.3 x 50

2шт.

16

47929397

PLATE

1шт.

17

334966

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

4шт.

18

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

19

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

7шт.
