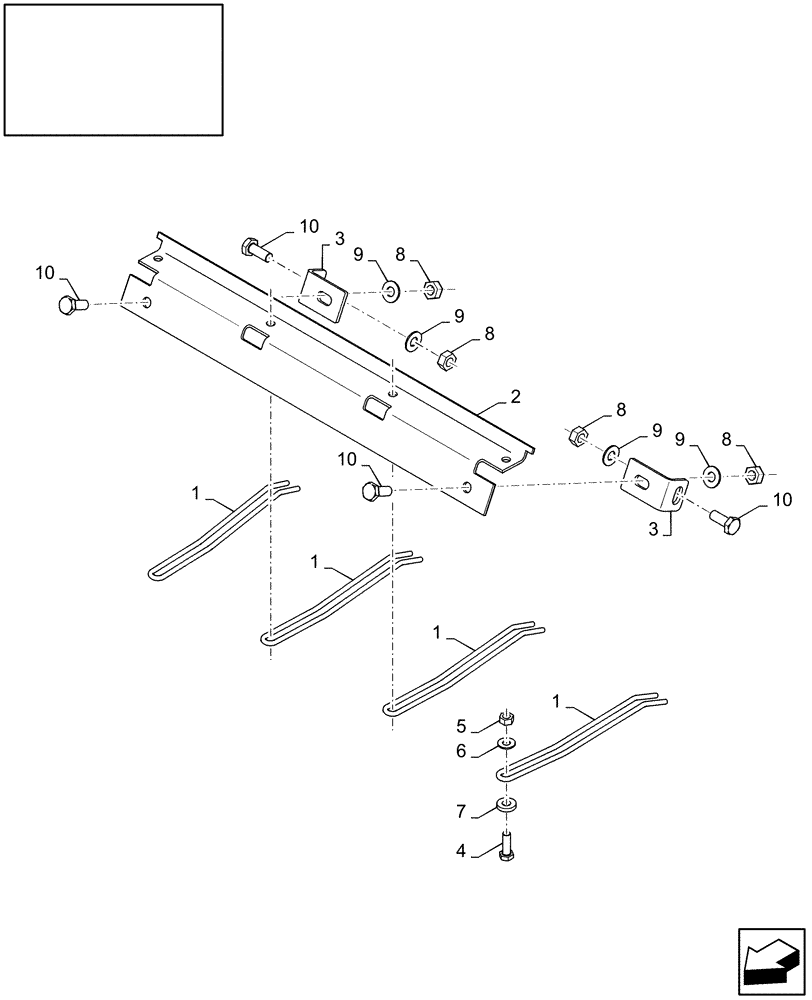

Запчасти Case IH LB333S (18.84112219[01]) - DIA : NEEDLE CLEANING KIT (18) - ACCESSORIES

84112219

DIA KIT, HARVESTER

1шт.

1

84801637

SPRING

4шт.

2

84801091

SUPPORT

1шт.

3

84801089

ANGLE

2шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

9706690

NUT,M8 x 1.25, Cl 8

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

350240

WASHER,9mm ID x 20mm OD x 4mm Thk

4шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.
