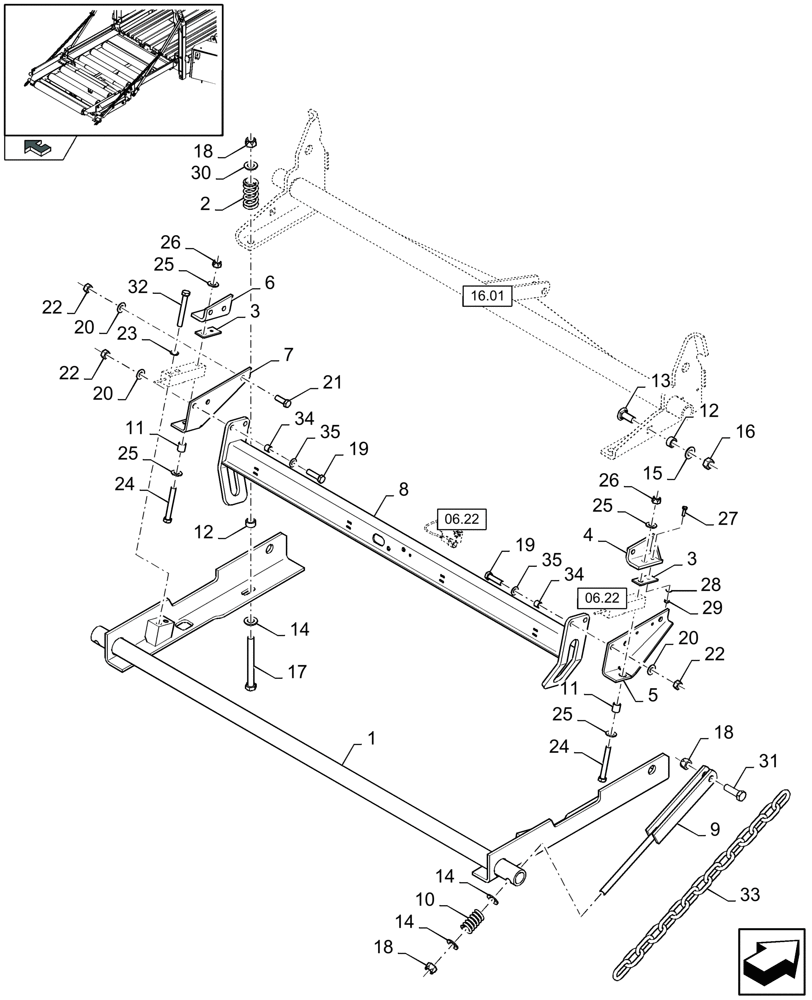

Запчасти Case IH LB333S (16.06[01]) - ELECTRICITY, BALE WEIGHING SYSTEM, LOWER FRAME (16) - BALE EJECTOR

1

84147967

FRAME

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

87698976

FRAME

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

84170427

COMPRESSION SPRING

2шт.

3

84141428

PLATE

2шт.

4

84141426

SUPPORT

1шт.

5

87622219

SUPPORT

1шт.

6

84141422

SUPPORT

1шт.

7

87622349

SUPPORT

1шт.

8

84147971

FRAME

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

8

84146740

FRAME

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

9

84147509

ARM

, Serial Range: -C823

2шт.

10

322270

SPRING

2шт.

11

87718128

BUSHING

2шт.

12

9837933

SPACER,17mm ID x 25.4mm OD x 12.5mm L

4шт.

13

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

14

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

6шт.

15

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

16

100020

NUT,M16 x 2.0, Cl 8

2шт.

17

362573

BOLT,Hex, M16 x 150mm, Cl 8.8

2шт.

18

86000441

NUT,M16 x 2.0, Cl 8

6шт.

19

120080

BOLT,Hex, M12 x 45, 8.8

, Serial Range: -C839

4шт.

19

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

, Start Serial: D840

4шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

21

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

, Serial Range: -C839

2шт.

21

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

, Start Serial: D840

2шт.

22

9706685

NUT,M12 x 1.75, Cl 8

6шт.

23

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

24

412485

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9, Full Thd

2шт.

25

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

4шт.

26

100038

NUT,M12 x 1.75, Cl 8

2шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

29

9706755

NUT,M6, Cl 8

2шт.

30

84210964

RING

2шт.

31

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

32

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

4шт.

33

84074170

CHAIN,1505mm L

, Start Serial: D824

2шт.

34

84300699

BUSHING

, Start Serial: D840

4шт.

35

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

, Start Serial: D840

4шт.
