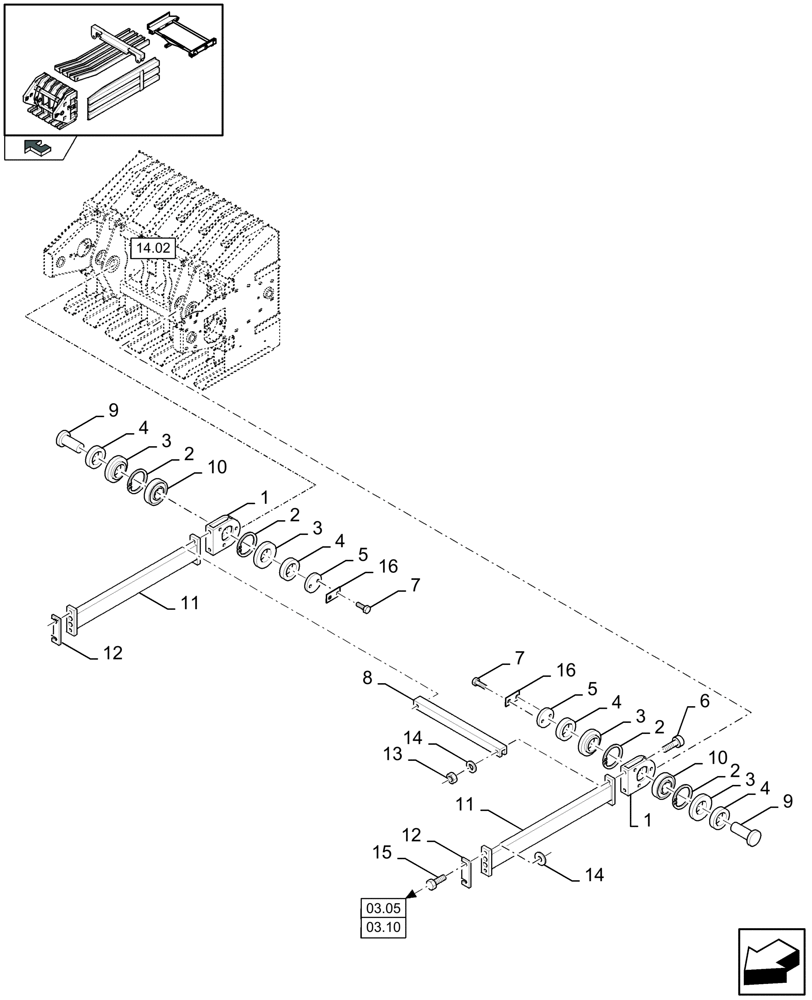

Запчасти Case IH LB333S (14.01[01]) - PLUNGER, RODS (14) - BALE CHAMBER

1

84074870

SUPPORT,100 mm ID x 52 mm

2шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

84074868

BEARING HOUSING,120 mm ID x 65 mm

2шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

370026

SNAP RING,M100 x 3mm Thk, Internal

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

2

412270

SNAP RING,M120 x 4mm Thk, Internal

4шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

3

84000584

SPACER,55mm ID x 85mm OD x 16mm L

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

3

9838119

THRUST RING,55mm ID x 100mm OD x 20mm Thk

4шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

4

84004409

SEAL,85mm ID x 100mm OD x 9mm Thk

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

4

9838315

SEALING RING,100mm ID x 120mm OD x 10mm Thk

SEALRING

4шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

5

84045245

DISC

2шт.

6

84004413

SCREW,M14 x 70mm, Cl 8.8

M14 x 70

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

6

9838120

HEX SOC SCREW,M16 x 70mm, Cl 10.9

M16 x 70

4шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

7

120079

BOLT,Hex, M12 x 40, 8.8, Full Thd

, Serial Range: -C885

4шт.

7

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

, Start Serial: D886

4шт.

8

84000586

CROSSRAIL

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

8

9838114

ANGLE BAR

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

9

84045246

SHAFT

2шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

9

84045247

SHAFT

2шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

10

9516384

SPHERICAL BEARING,55mm ID x 100mm OD x 25mm W

2шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

10

9838113

BEARING ASSY,65mm ID x 120mm OD x 31mm W

2шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

11

87664702

LINK CONROD

2шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

11

87664701

LINK CONROD

2шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

12

84000581

ADJUSTING PLATE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

12

9838109

ADJUSTING PLATE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

13

100019

NUT,M14, Cl 8

, Serial Range: -C885

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

13

86508817

NUT,M14, Cl 8

, Start Serial: D886

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

13

9505933

NUT,M16 x 2, Cl 12

4шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

14

84011662

WASHER,14mm ID x 32mm OD x 3.5mm Thk

14 MM

8шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

14

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

8шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

15

440419

BOLT,Hex, M14 x 2 x 55mm, Cl 8.8, Full Thd

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

15

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

16

84045248

LOCKING PLATE

2шт.
