Запчасти Case IH LB333S (08.27[01]) - TWINE BOXES RH SUPPORT (08) - SHEET METAL/DECALS

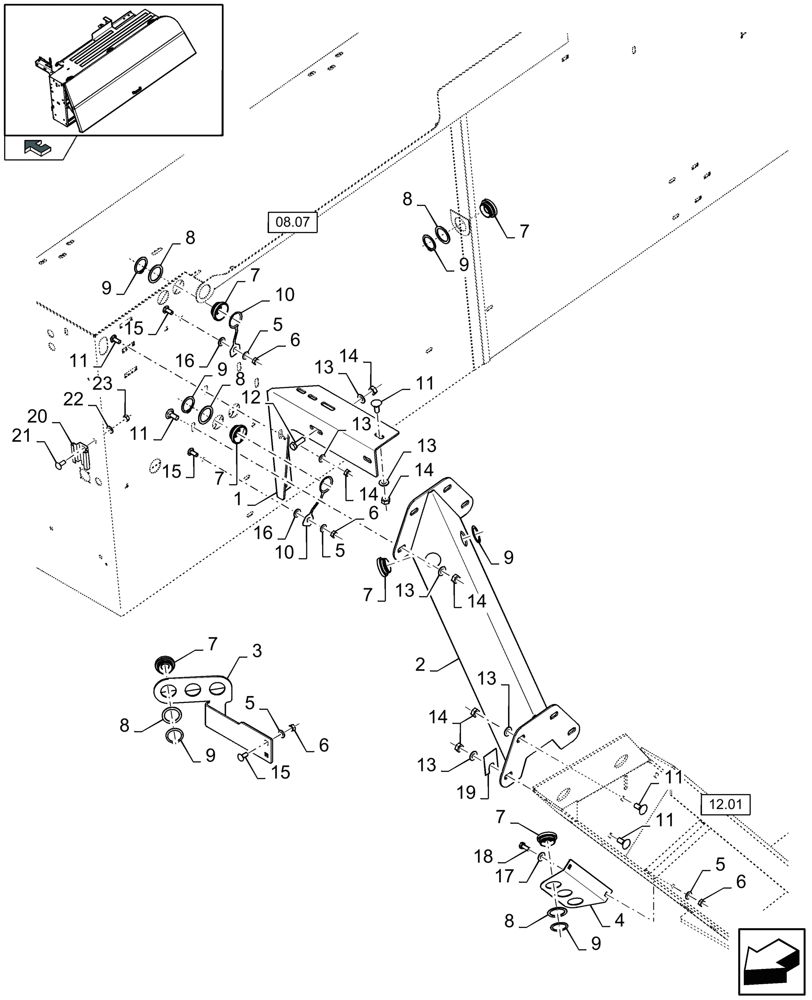

Схема запчастей Case IH LB333S - (08.27[01]) - TWINE BOXES RH SUPPORT (08) - SHEET METAL/DECALS
3
7
6
13
11
7
8
11
15
5
7
22
9
5
8
13
16
6
10
7
6
14
10
16
11
7
14
8
17
9
7
5
14
13
9
18
21
2
13
9
8
11
1
20
13
11
19
14
12.01
8
9
13
4
15
9
12
23
08.07
15
home
6
14
5

Артикул

Название

Примечание

Количество

1

84444417

SUPPORT

1шт.

2

84819698

SUPPORT

, Serial Range: -C867

1шт.

2

84319736

SUPPORT

, Start Serial: D868

1шт.

3

87731213

SUPPORT

1шт.

FOR LB323S, LB323R, LB323P, LB423S, LB423R ONLY

1шт.

3

87478865

SUPPORT

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

4

84819378

SUPPORT

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

9706690

NUT,M8 x 1.25, Cl 8

8шт.

7

87331610

GUIDE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

7

87331610

GUIDE

15шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

8

84444540

WASHER,35mm ID x 45mm OD x 2mm Thk

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

8

84444540

WASHER,35mm ID x 45mm OD x 2mm Thk

14шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

9

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

9

370004

SNAP RING,M35 x 1.5mm Thk, External

15шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

10

87332566

FIXING PLATE

, Serial Range: -C927

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

10

84421934

LEAF SPRING

, Start Serial: D928

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

10

87332566

FIXING PLATE

, Serial Range: -C927

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

10

84421934

LEAF SPRING

, Start Serial: D928

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

11

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

15шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

14

100016

NUT,M10 x 1.5, Cl 8

15шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

16

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

17

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

84074027

SHIM

2шт.

20

9837606

CLIP

, Start Serial: D868

1шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D868

2шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D868

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D868

2шт.

Выбрано товаров: 43
