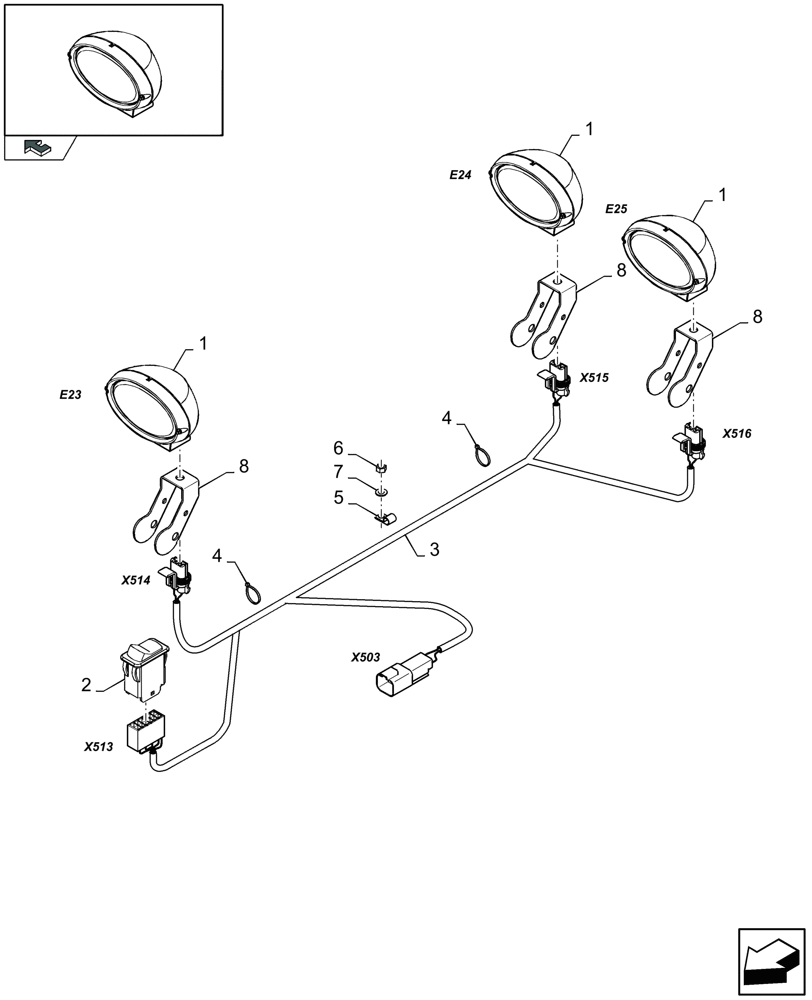

Запчасти Case IH LB333R (06.18[01]) - LIGHTS, KNOTTER AND NEEDLE YOKE (06) - ELECTRICAL SYSTEMS

1

86643190

LAMP,Halogen, 12V, 36W, Clear

3шт.

2

84320248

LIGHT SWITCH

1шт.

3

87383653

WIRE HARNESS

1шт.

SEE FIGURE 06.524

1шт.

4

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

30шт.

5

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

84124096

SUPPORT

, Start Serial: D724

3шт.
