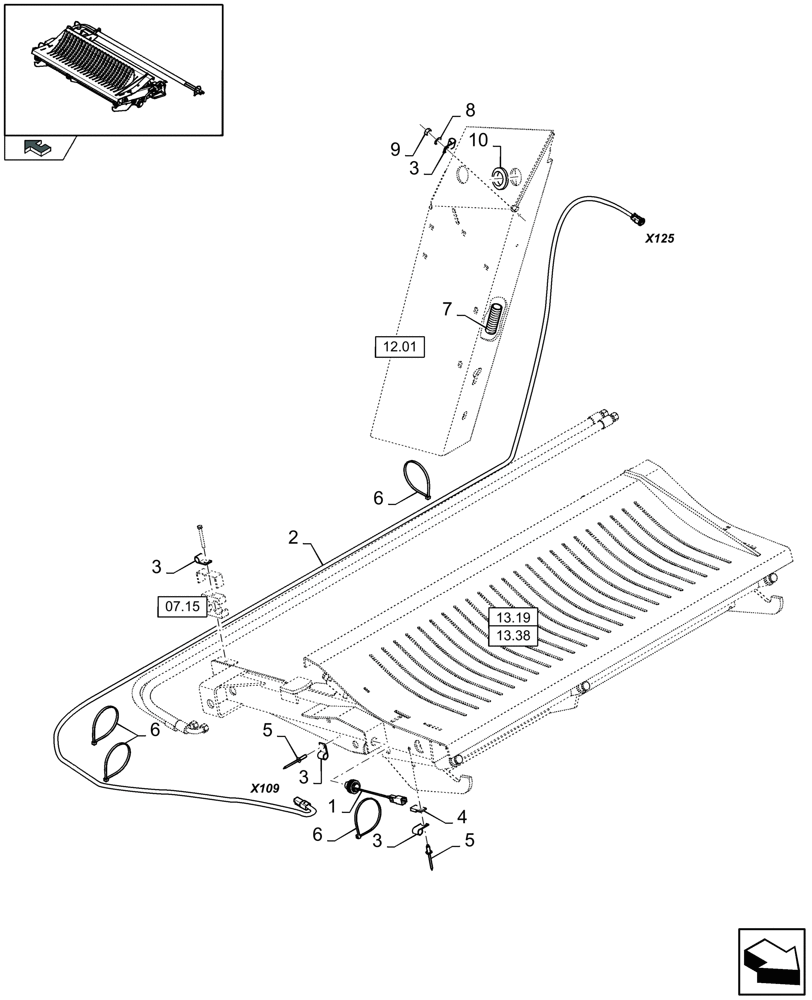

Запчасти Case IH LB333R (06.17[01]) - KNIFE DRAWER CUT, ELECTRICITY (06) - ELECTRICAL SYSTEMS

1

87342073

SENSOR

B10 - STATUS CUTTER, Serial Range: -C867

1шт.

MAINTENANCE PART

1шт.

1

87680717

SENSOR

B10 - STATUS CUTTER, Serial Range: -F868915

1шт.

MAINTENANCE PART

1шт.

1

87342073

SENSOR

B10 - STATUS CUTTER, Start Serial: D916

1шт.

MAINTENANCE PART

1шт.

2

84072937

WIRE HARNESS

1шт.

SEE FIGURE 06.503

1шт.

3

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

4

84058832

CLIP

1шт.

5

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

2шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

7

NS

NOT SERVICED

L= 0.5 M

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

920516

GUIDE

1шт.
